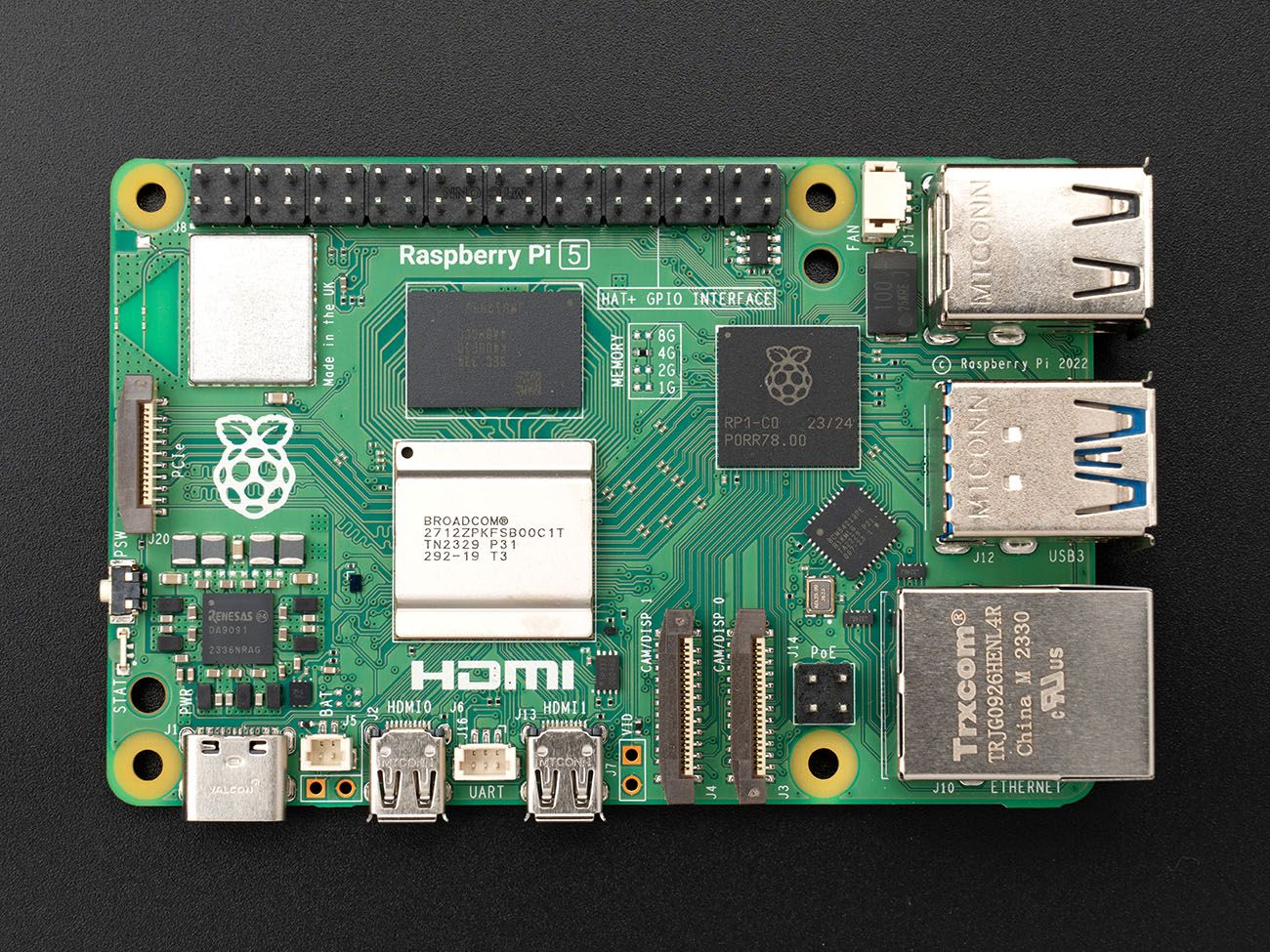

Raspberry Pi 5

Raspberry Pi
SKU: TH0487 MPN: SC1111
$60.00 Out of Stock
Ships Today - If you order within hrs mins!

  • RAM






  • 64-bit quad-core Arm Cortex-A76 processor at 2.4GHz for superior CPU performance.
  • Dual 4Kp60 HDMI outputs and advanced VideoCore VII GPU for exceptional graphics.
  • Full-size design with Raspberry Pi's own RP1 chip enhancing I/O capabilities.
  • Supports high-bandwidth peripherals with PCIe 2.0, dual-band WiFi, and Bluetooth 5.0.
  • Ideal for educational, hobbyist, and industrial applications.
  • Available in 4GB and 8GB variants for diverse project needs.
  • 1 Year warranty

Bulk Order?

Contact sales on WhatsApp and get bulk order discount!
or, mail us on support

Contact Sales

Out of Stock!

We will email you when this item is back in stock. Please enter your email

Also Include
Raspberry Pi 5 Official Case with Fan
$10.00 In Stock
Raspberry Pi 27W USB-C Power Supply
$12.00 In Stock
Raspberry Pi Micro HDMI to HDMI Cable
$5.00 In Stock


Introducing the highly anticipated Raspberry Pi 5! lineup featuring a 64-bit quad-core Arm Cortex-A76 processor running at 2.4GHz. This iteration delivers a 2 to 3 times increase in CPU performance compared to its predecessor, Raspberry Pi 4. With its 800MHz VideoCore VII GPU, the Raspberry Pi 5 gurantees an improvment in graphics performance, supporting dual 4Kp60 display outputs over HDMI and advanced camera functionalities through a rearchitected Image Signal Processor.

Designed for both consumers seeking a seamless desktop experience and industrial users exploring new applications, the Raspberry Pi 5 marks a full-size evolution with in-house built silicon, the RP1, enhancing I/O capabilities and peripheral performance significantly.


Some of the primary changes and features of Raspberry P 5i.

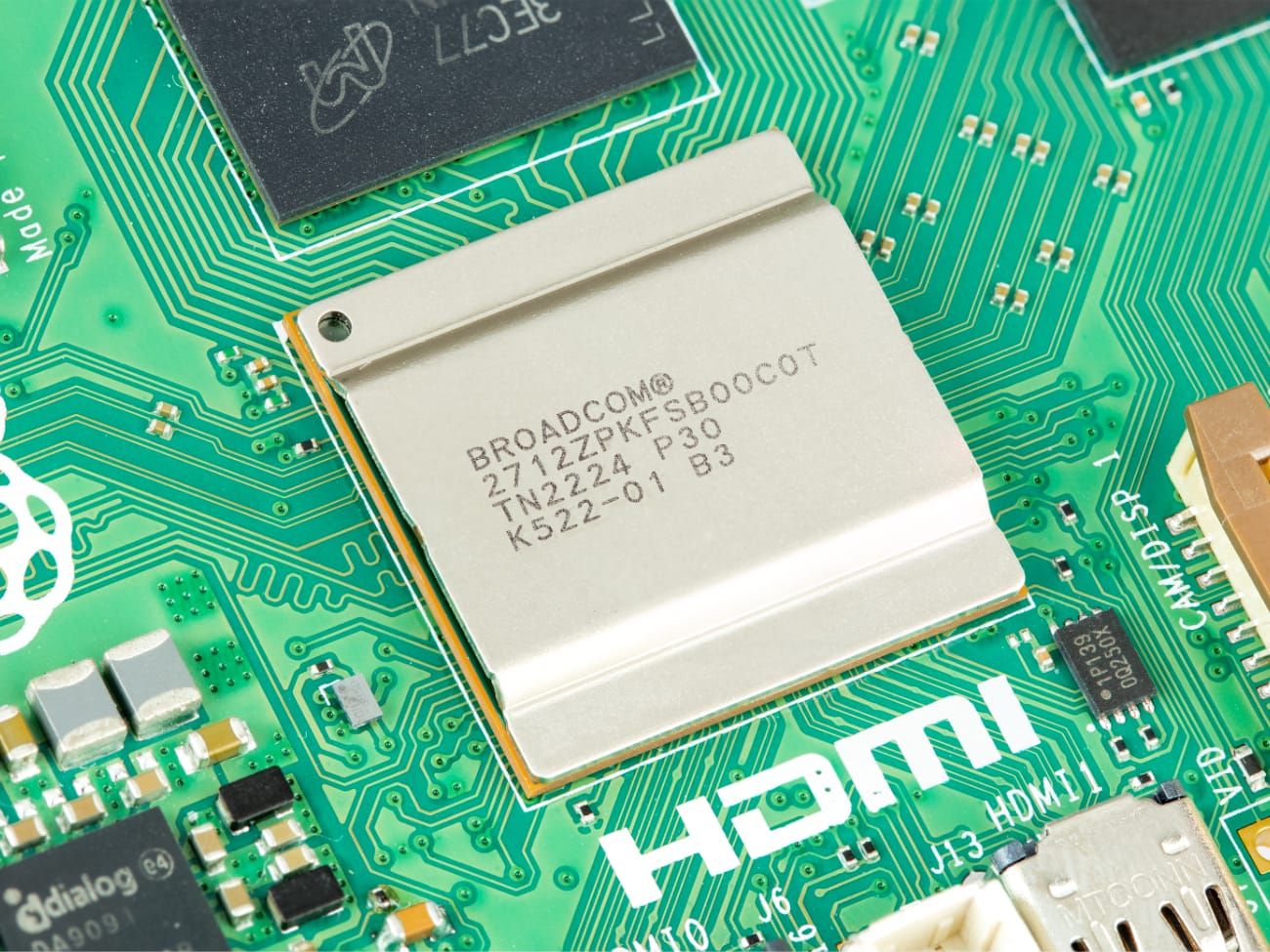

1. 64-bit Quad-Core Arm Cortex-A76 Processor
Raspberry Pi 5 Processor
Fig.1 - 64-bit quad-core Arm Cortex-A76 processor running at 2.4GHz

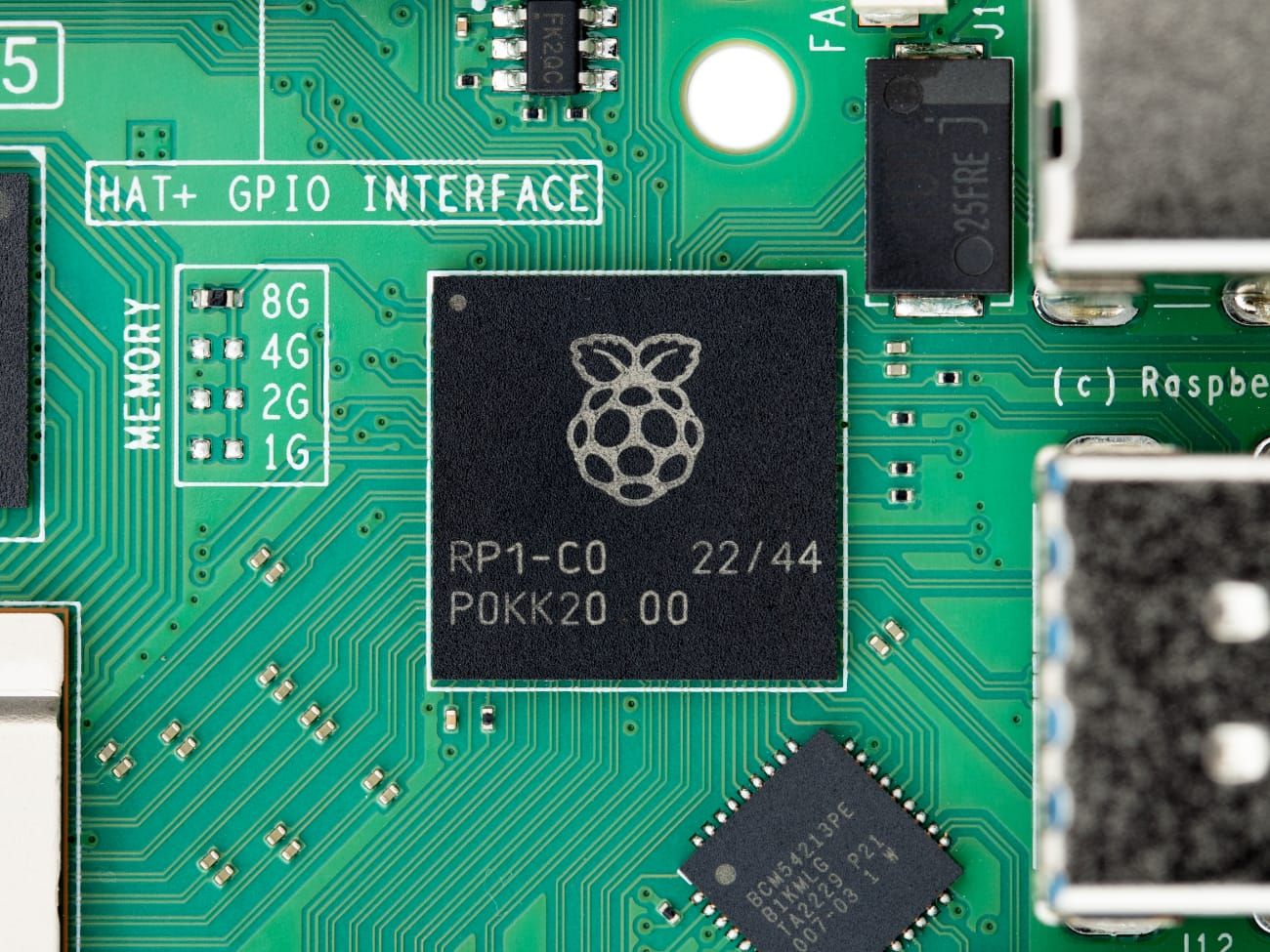

2. RP-1 Chip
Raspberry Pi 5 RP-1 Chip
Fig.2 - RP1 chip enhancing I/O capabilities.


Processor Quad Arm Cortex-A76 @ 2.4GHz
Cryptographic Extension support (AES on hardware)
512KB per-core L2 caches
2MB L3 cache
Display Dual 4kp60 HDMI display output with HDR support
Video 4kp60 HEVC decoder
VideoCore VII graphics, with OpenGL-ES 3.1, Vulkan 1.2
Raspberry Pi Image Sensor Processor (ISP)

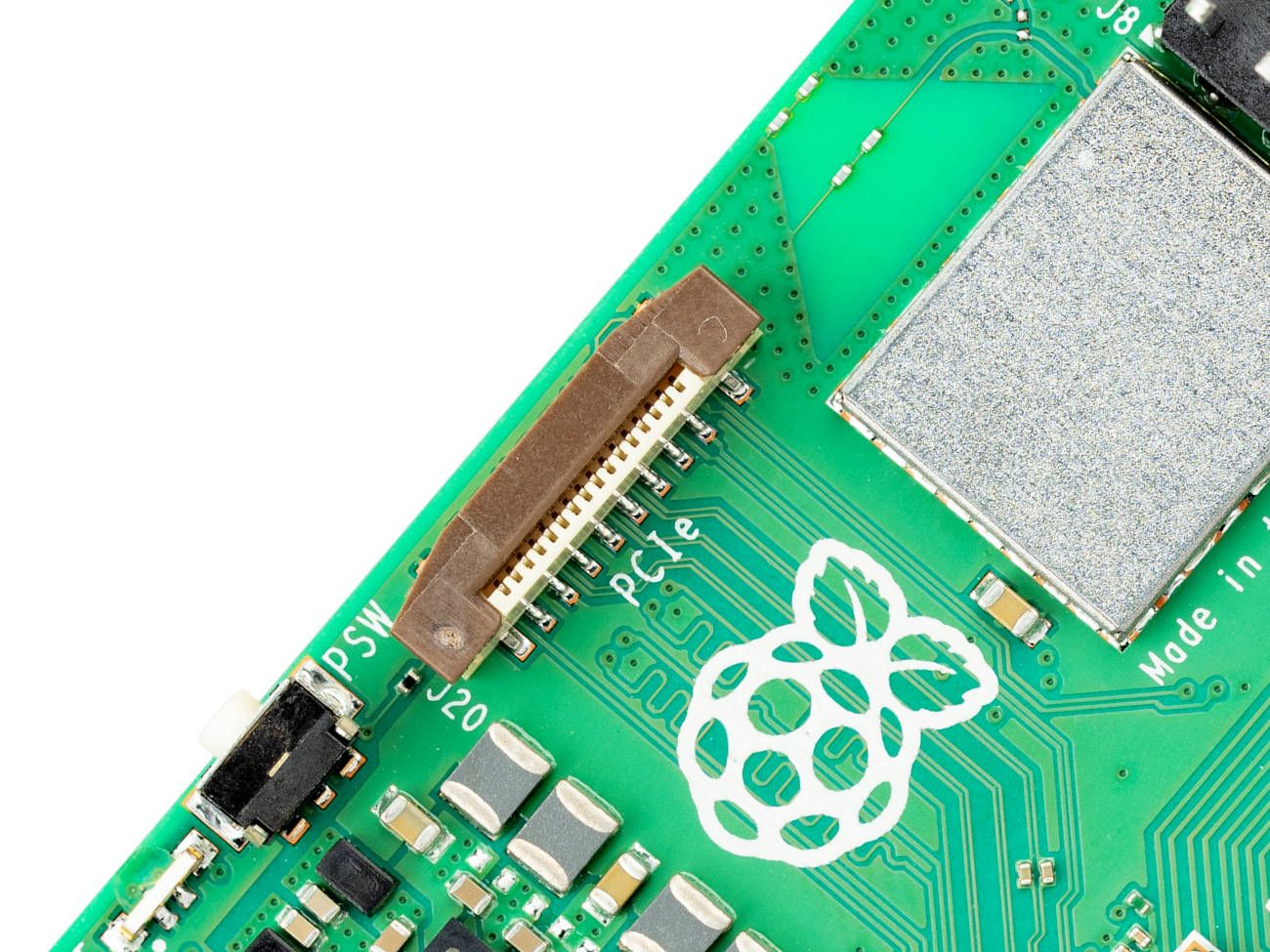

Connectivity PCIe (1× 2.0 port, additional HAT required)
802.11ac dual-band WiFi
Bluetooth 5.0 (with BLE support)
Gigabit Ethernet
USB 2× USB 3.0 (Simultaneous full throughput)
2× USB 2.0
CSI/DSI Dual 4-lane MIPI CSI/DSI transceivers
2× Display
2x Camera
1x Display & 1x Camera
(Any one of the above combinations)
GPIO Header Raspberry Pi 40-pin GPIO header
Other Features
Fan Connector
UART Connector
RTC (Real Time Clock)
RTC Battery Connector

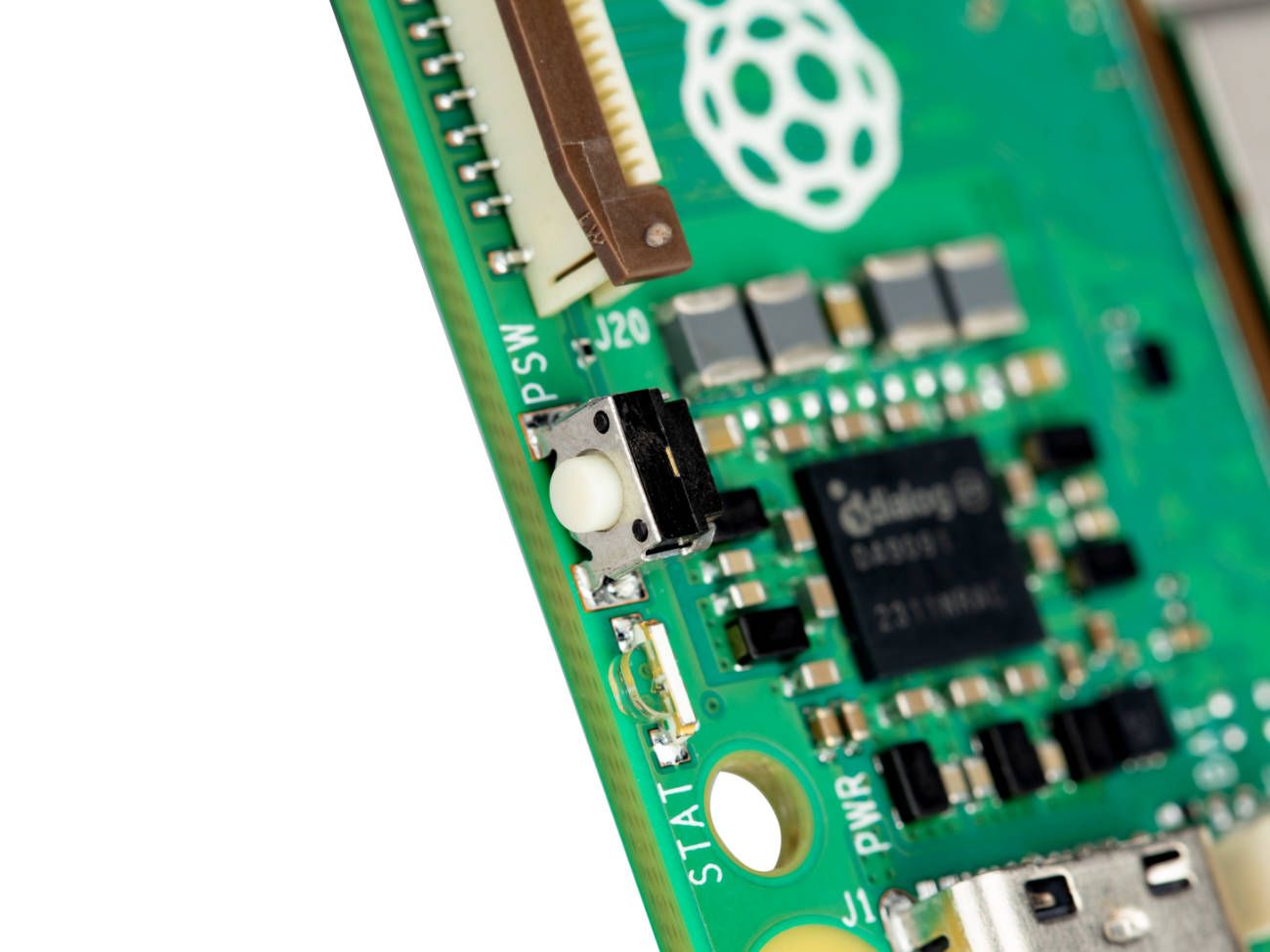

Power Button
Dimension 85 x 56 mm

Power Supply

We recommend using a official Raspberry Pi 5 27W USB-C power supply which provides 5A current at +5.1V output.

The power supply comes with a USB-PD protocol which enables the control of higher voltages and currents through software, but necessitates the presence of a specific Power Management Integrated Circuit (PMIC). This component is exclusively found in the Raspberry Pi 5. To utilize these power supplies effectively, it is essential to use USB-PD compatible cables thus the official Raspberry Pi 5 power supply comes with a cable attached.

Attention! Using other USB-PD-capable phone chargers, despite advertising power outputs greater than 15W, typically attain this by elevating the voltage rather than supplying a higher current at +5V. Should you use a power supply incapable of delivering 5A at +5V upon initial boot, the operating system will issue a warning, indicating that the current available for peripherals is limited to 600mA.

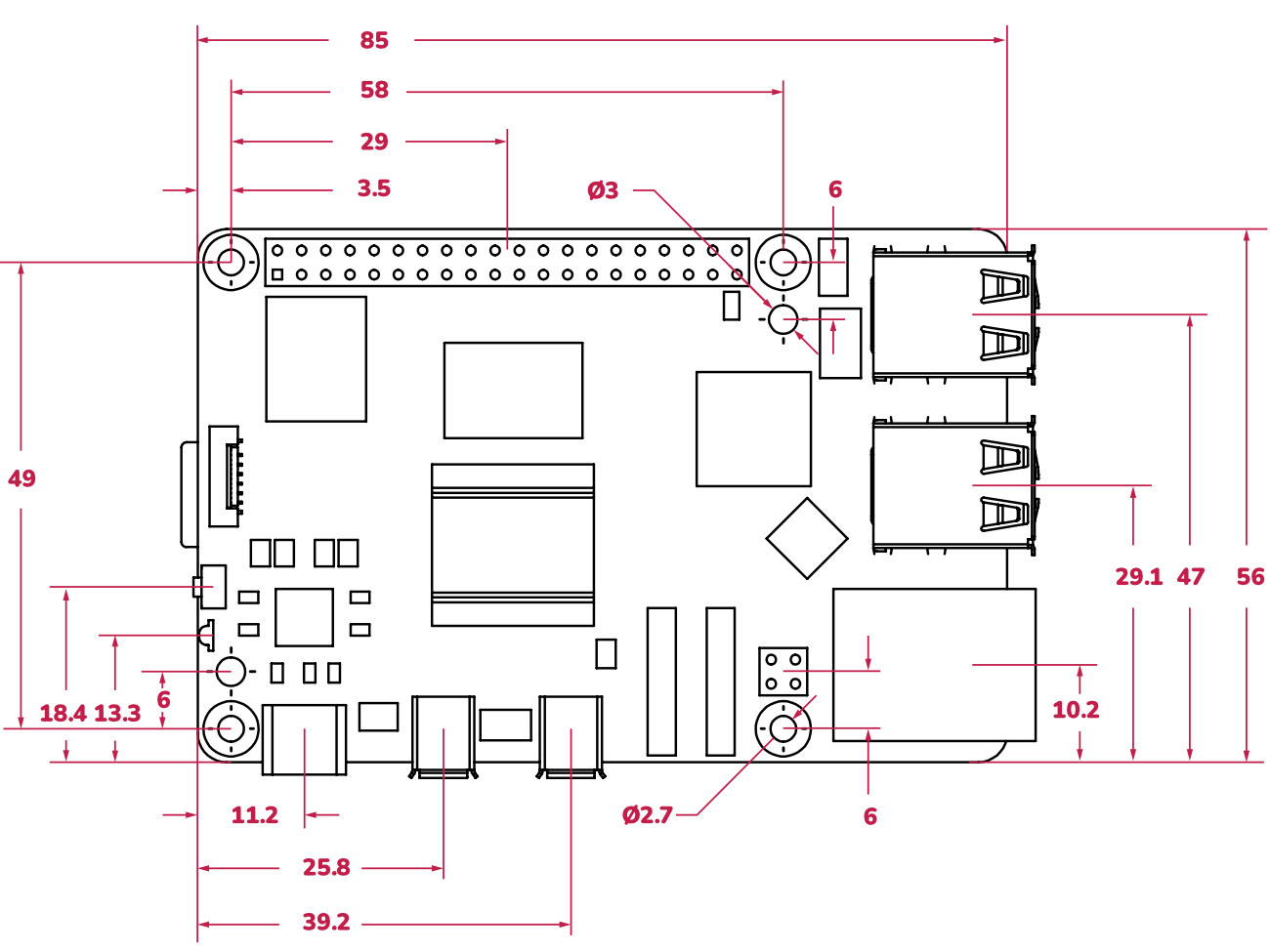

Mechanical Drawing


3V3 Power 1 2 5V Power
GPIO 2 (SDA) 3 4 5V Power
GPIO 3 (SCL) 5 6 Ground
GPIO 4 7 8 GPIO 14 (TXD)
Ground 9 10 GPIO 15 (RXD)
GPIO 17 11 12 GPIO 18 (PCM_CLK)
GPIO 27 13 14 Ground
GPIO 22 15 16 GPIO 23
3V3 Power 17 18 GPIO 24
GPIO 10 (MOSI) 19 20 Ground
GPIO 9 (MISO) 21 22 GPIO 25
GPIO 11 (SCLK) 23 24 GPIO 8 (CE0)
Ground 25 26 GPIO 7 (CE1)
GPIO 0 (ID_SD) 27 28 GPIO 1 (ID_SC)
GPIO 5 29 30 Ground
GPIO 6 31 32 GPIO 12 (PWM0)
GPIO 13 (PWM1) 33 34 Ground
GPIO 19 (PCM_FS) 35 36 GPIO 16
GPIO 26 37 38 GPIO 20 (PCM_DIN)
Ground 39 40 GPIO 21 (PCM_DOUT)
