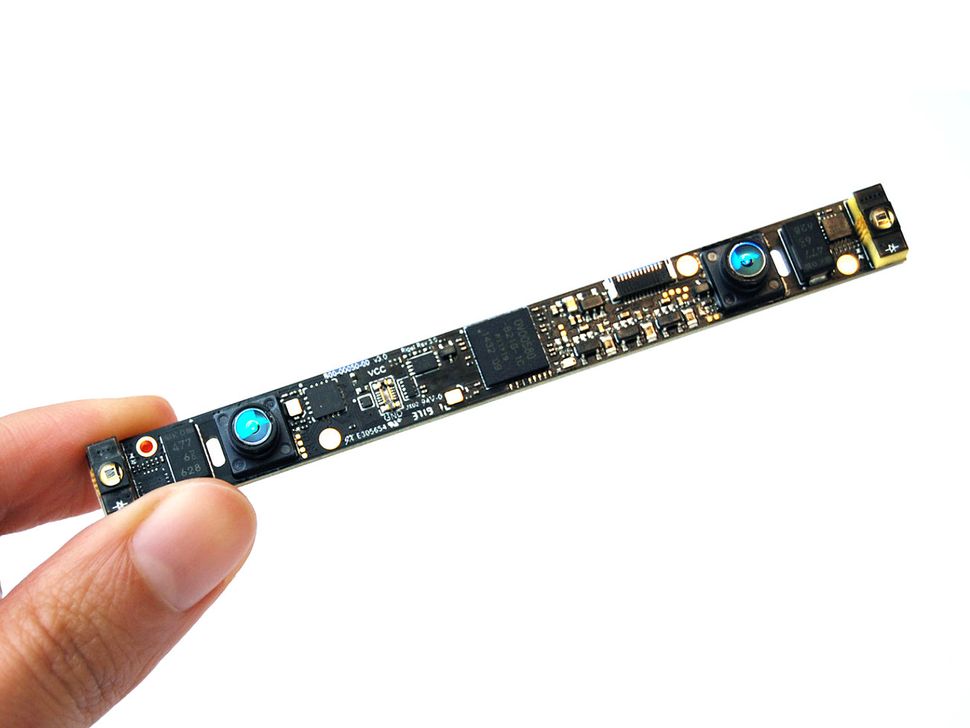

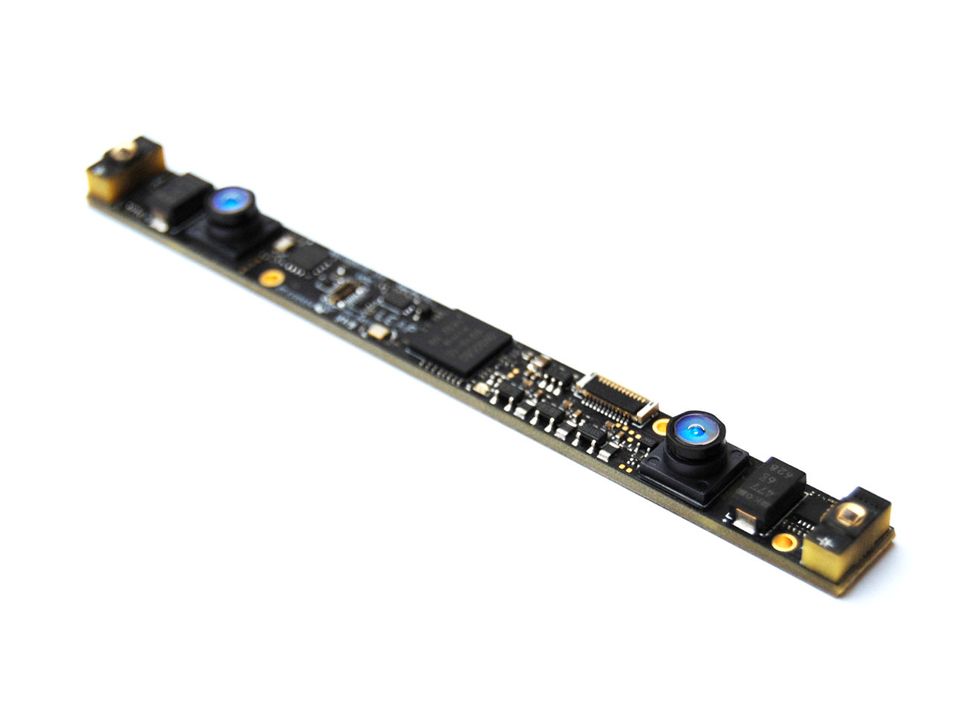

Ultraleap Stereo IR 170 Camera Module Evaluation Kit

Overview

The Ultraleap Stereo IR 170 is a next-generation optical hand tracking module that captures the movement of users’ hands and fingers so they can interact naturally with digital content. It is designed to be integrated intoenterprise-grade hardware solutions, displays, installations, and virtual/augmented reality headsets for AR/VR/XR prototyping, research, and development.

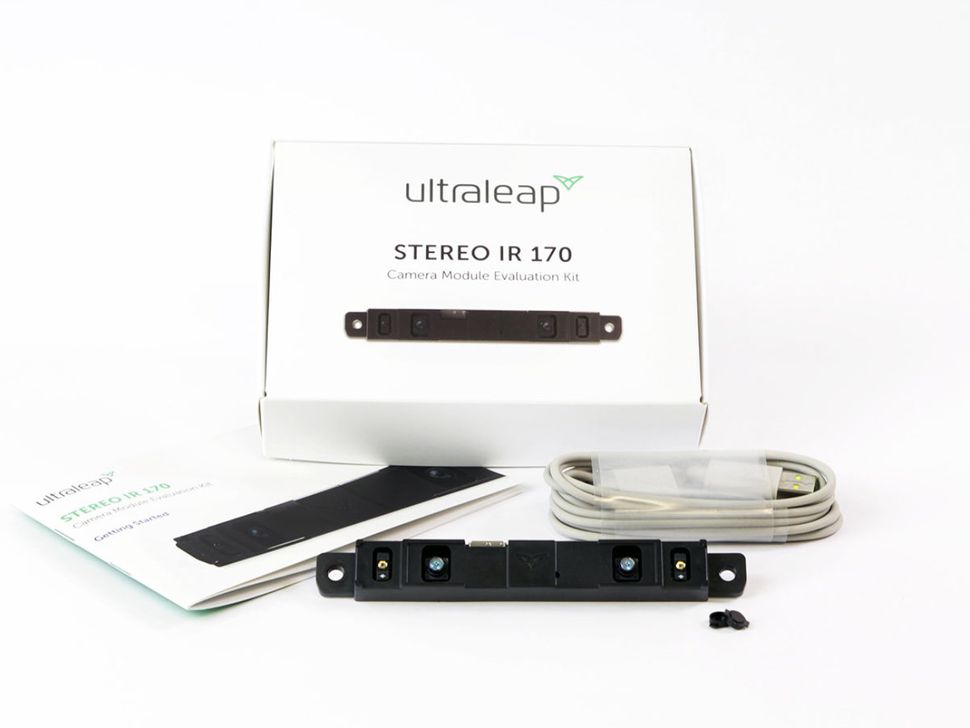

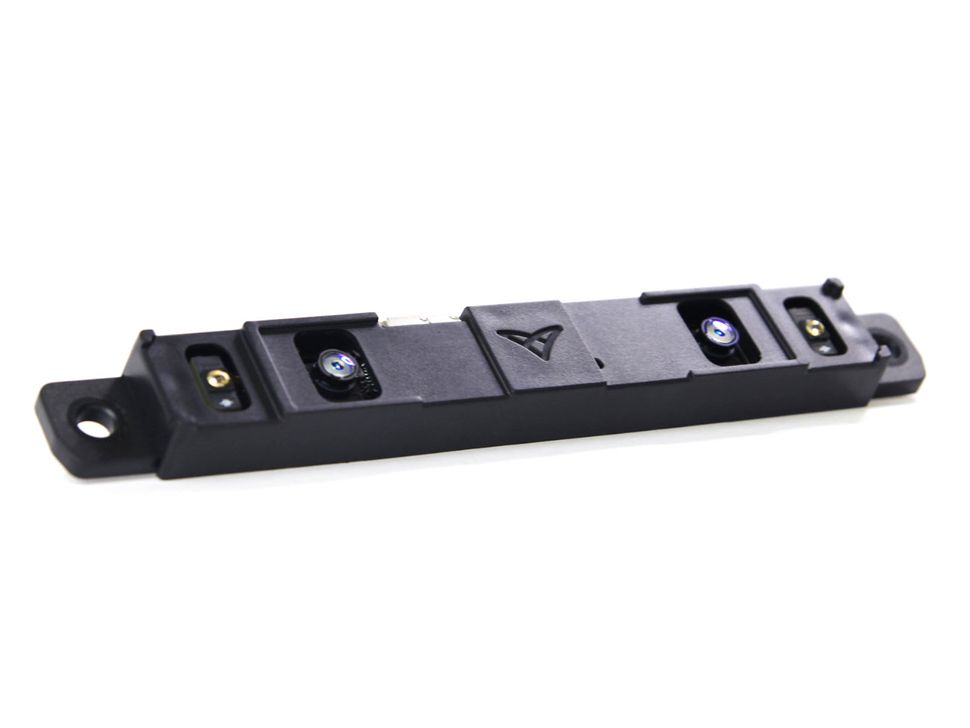

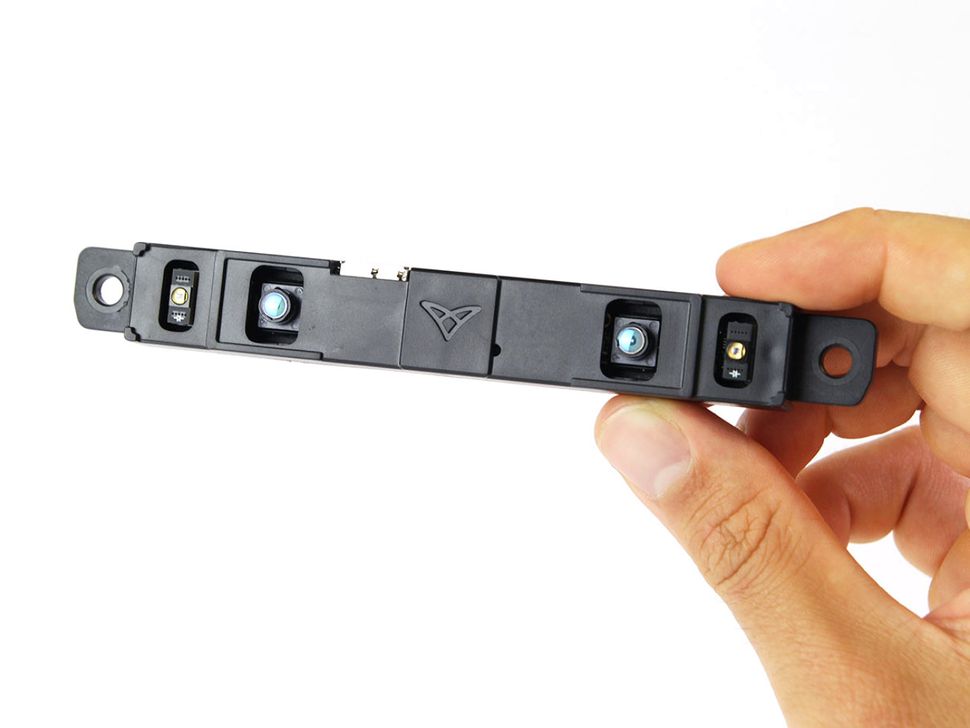

The Stereo IR 170 Evaluation kit consists of the Ultraleap Stereo IR 170 camera module in a plastic housing with USB header, allowing for easy plug-and-play evaluation.

The Ultraleap Stereo IR 170 camera module uses the same core software as its predecessor, the Leap Motion Controller. Both can discern 27 distinct hand elements, including bones and joints, and track them even when they are obscured by other parts of the hand.

Ultraleap Stereo IR 170 features a wider field of view, a longer tracking range, lower power consumption, and smaller form factor. It’s capable of tracking hands within a 3D interactive zone that extends from 10cm (4”) to 75cm (29.5”) or more, extending from the device in a 170x170° typical field of view (160x160° minimum).

Applications

Example applications for Ultraleap Stereo IR 170

• Touchless public interfaces (interactive kiosks, digital out-of-home,elevators)
• Entertainment (location-based VR/AR experiences, arcades, amusement parks)
• Healthcare (stroke rehabilitation, training, mirror, medical imaging, lazy eye treatment)
• Therapy and education (anatomic visualizations, hands-on learning)
• Personnel training (flight simulators, complex computer systems)
• Industrial design and engineering (automotive, assembly lines, facilities management)
• Robotics (telepresence, robotic controls, AI-assisted teaching)
• Remote collaboration

SPECIFICATION

Ultraleap Stereo IR 170 Specification

• Power Supply
  5V DC via USB connector (minimum 0.5A)
• Data Connection
  Micro USB Type-B (2.0 or 3.0) when in plastic housing. When integrated, PCB module can be wired directly.
• Interaction Zone
  Depth of between 10 cm (4”) to 75cm (29.5”) preferred, up to 1 m (39”) maximum; 170×170° typical field of view (160×160° minimum). Tracking works in a range of environmental conditions.
• Cameras
  Stereo IR operating at 90fps
• Operating Wavelength
  850nm. Stereo IR 170 provides its own illumination via two IR LEDs spaced on either side of the cameras.
• Ambient Operating Temperature
  0° to 40°C (32° to 104° F) N.B. Out of case operating temperature range is slightly wider, 0° to 50°C (32º to 122° F).
• Minimum System Requirements (Desktop):
  Windows® 7+; AMD Phenom™ II or Intel® Core™ i3/i5/i7 processor; 2 GB RAM; USB 2.0 port. VR headsets may come with their own system requirements.
  Note: The Stereo IR 170 Evaluation Kit is currently Windows compatible only
