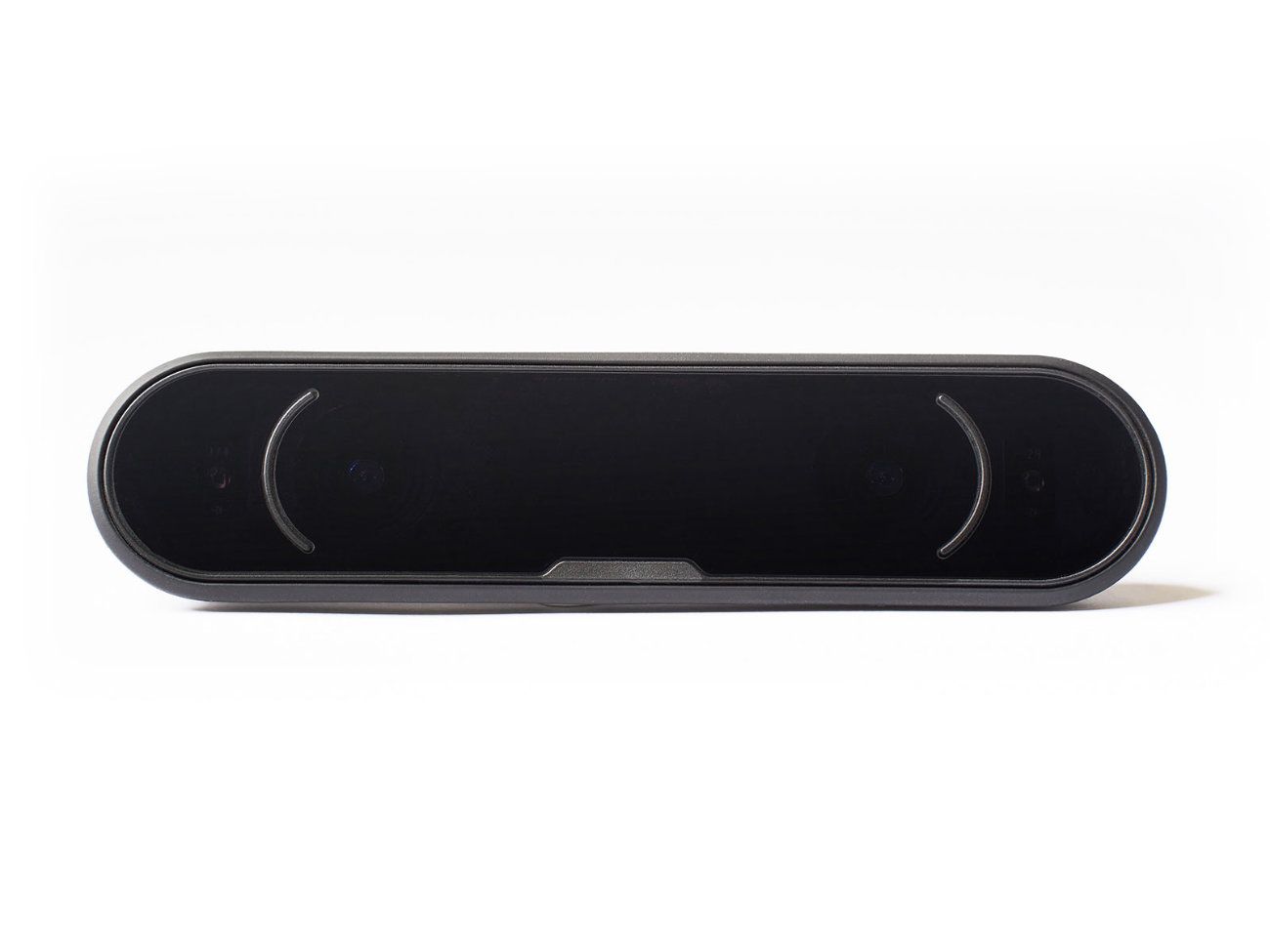

The Ultraleap 3Di Stereo Hand Tracking Camera is designed to be connected to an interactive screen. Together with Ultraleap’s world-leading software, it transforms displays into touchless, three-dimensional, immersive surfaces.
Ultraleap 3Di allows easy integration of Ultraleap hand tracking in a form factor ruggedized for use in permanent settings – such as self-serve kiosks, digital out-of-home installations, interactive displays in retail, museums, and theme parks, or medical/industrial uses.
TThe camera uses Ultraleap’s patented stereo infrared technology and world-leading Gemini hand tracking software. It is robust even in challenging lighting conditions, and reliably tracks a wide variety of hand sizes and shapes.
Ultraleap also provides a suite of developer tools for development of touchless experiences:
Detects a user’s hand in mid-air and converts it to an on-screen cursor. Retrofit existing touchscreen interfaces with touchless gesture control or evaluate using your desktop monitor.
TouchFree Tooling for Web or Unity
Add touchless cursor control into kiosk applications in minutes, and have total control over how your application reacts to users’ hand movements
Whats in the Box?
Whats included in the box?
- Ultraleap 3Di Stereo Hand Tracking Camera
- USB 2.0 cable*
- Mini tripod*
- Getting started guide*
Ultraleap 3Di Stereo Hand Tracking Camera Specification
5 VDC via USB connector
500 mA max
250 mA typical

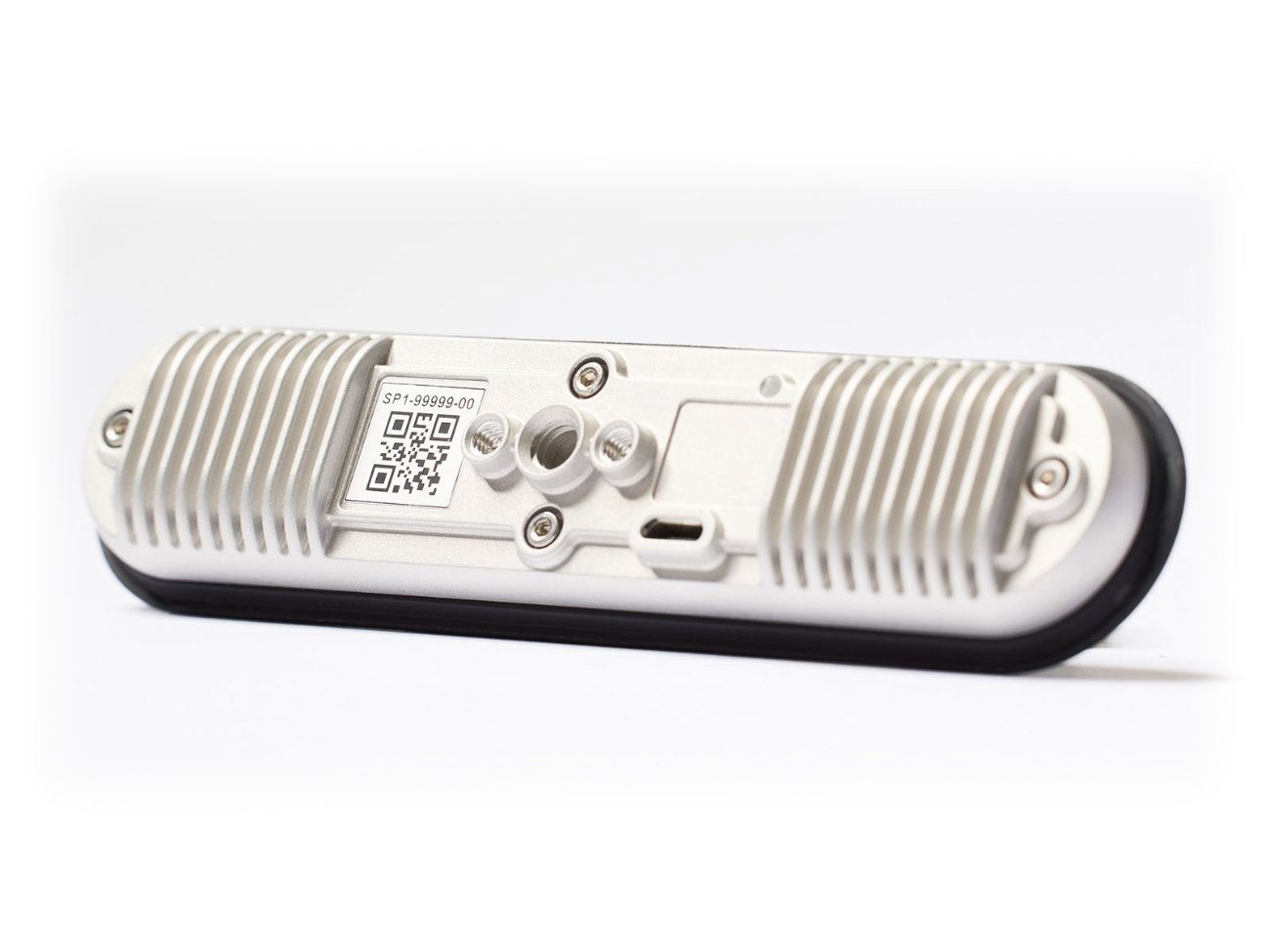

USB 2.0 via micro USB type-B connector
Depth of between 10 cm (4”) to 75 cm (29.5”) preferred, up to 1 m (39”) maximum; 170°×170° typical field of view (160°×160° minimum). Ultraleap 3Di can provide touchscreen emulation for screens up to 42” (portrait or landscape). Larger screens can also be controlled through interaction at a distance.
850 nm. Provides its own illumination via two IR LEDs spaced on either side of the cameras.
0°C to 40°C (32°F to 104°F)
IP54 when mounted using Panel Mount Kit (available from Ultraleap)
UKCA, CE, FCC
Minimum System Requirements (Desktop):
Windows® 10, 64-bit, Intel® Core™ i3 processor 5th Gen (must support AVX instructions), 2 GB RAM, USB 2.0 port. Note: Ultraleap 3Di is currently Windows compatible only.
Note: The Stereo IR 170 Evaluation Kit is currently Windows compatible only
