Actuonix Linear Actuator Control Board

Actuonix
SKU: TH0234
$30.00 In Stock
Ships Today - If you order within hrs mins!


Quality
First

Awesome
Support

Secure
Checkout

Worldwide
Shipping

Out of Stock!

We will email you when this item is back in stock. Please enter your email

Overview

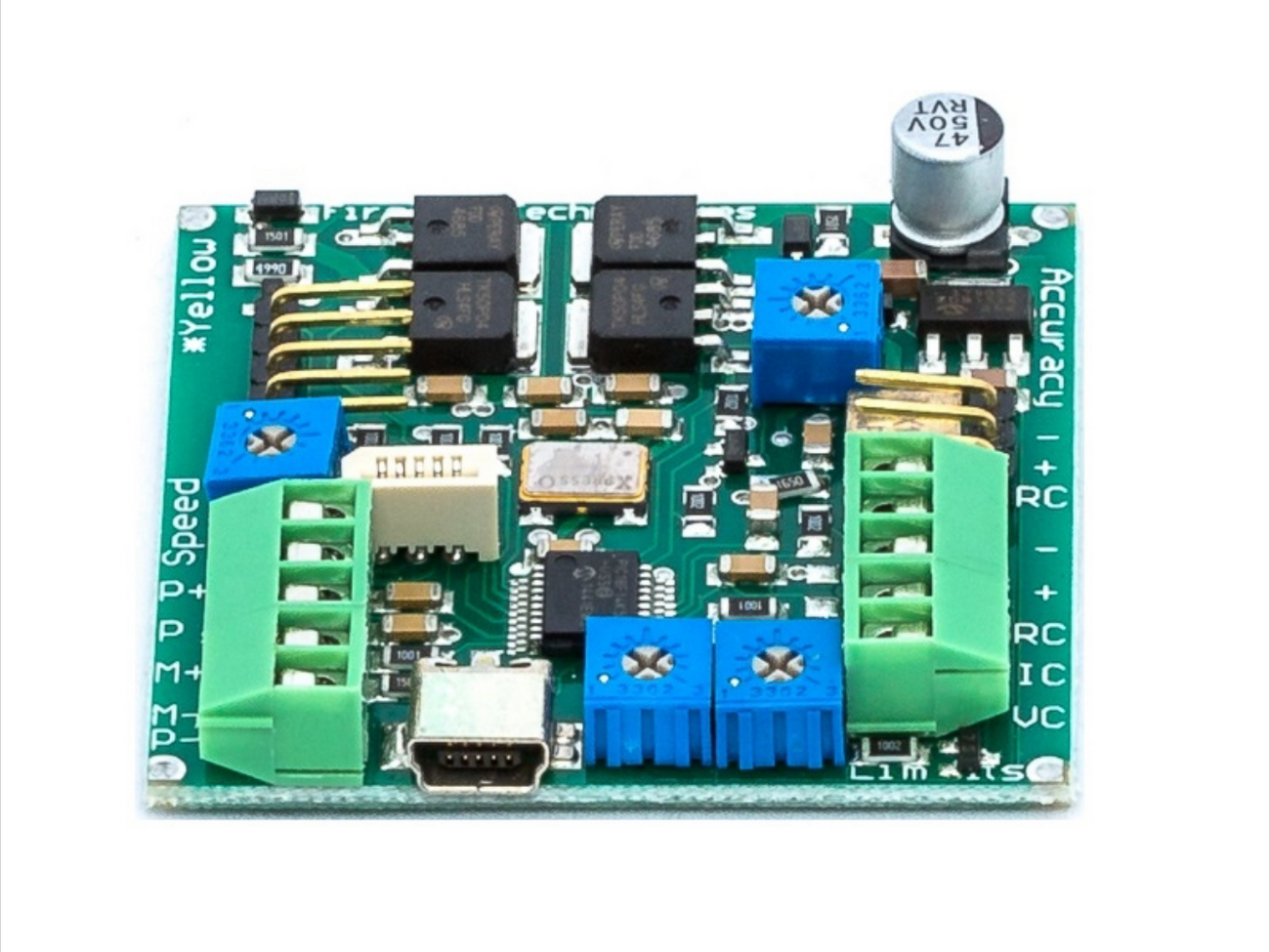

The Linear Actuator Control Board is a stand-alone, closed-loop control board specifically designed for Actuonix P-series micro linear actuators. The LAC simplifies designs by saving the development time, cost and processor overhead associated with direct motor control. As little as 1 digital or analog output is required for position control. Supported input signals include USB, voltage, current, RC servo and PWM. On-board adjustment of speed, sensitivity and stroke limits are available.

This linear actuator controller can be operated as both an interface board or as a stand alone controller with the addition of an external potentiometer and power supply. Each LAC board controls 1 linear actuator and will require an external power supply rated for the actuator.

The LAC is compatible with all P-series micro linear actuator on this site. A 6 volt or 12 volt power supply is required for operation.

Please note: the LAC board is only compatible with Actuonix P-series actuators. It will not work with our S, I or R actuators. Also note that if using the LAC for a Modified Power Wheels conversion, the LAC will not work with feedback actuators from Progressive Automations.

Whats in the Box?

Whats included in the box?

  • Linear Actuator Control Board
Downloads

SPECIFICATION

Actuator specification

  • Manufacturer Part Number
    LAC
  • Control input modes
    Digital: USB, RC Servo, 1 kHz PWM Analog: 0–3.3 V, 4–20 mA
  • Controller
    10-bit Dual Sample Rate Quasi PD
  • Compatible actuators
    PQ12 & L12 -P Actuators with position feedback, 6 or 12 volts L12–P Actuators with position feedback, 6 or 12 volts L16, P16 & T16 -P Actuators with position feedback, 6 or 12 volts Larger Actuators with position feedback, 12 volts, 24 volts
  • Dimensions
    50 mm x 50 mm (excluding battery holder)
  • Power
    6–24 VDC, 4 Amps peak current at 10% duty cycle (Note: Supply voltage must match actuator’s rated voltage)
  • Operating environment
    –10 to +70°C at 10–80% relative humidity
