Overview

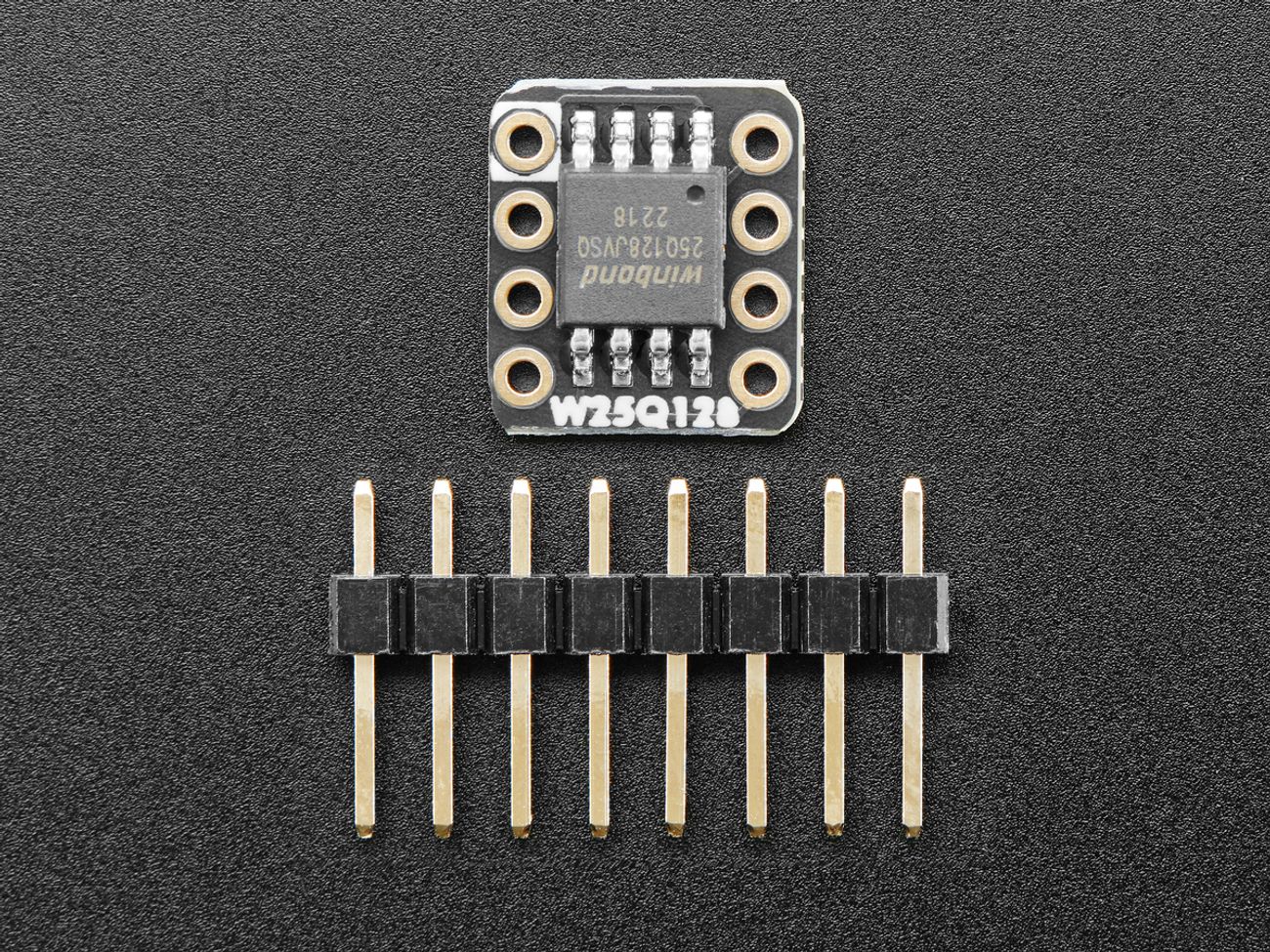

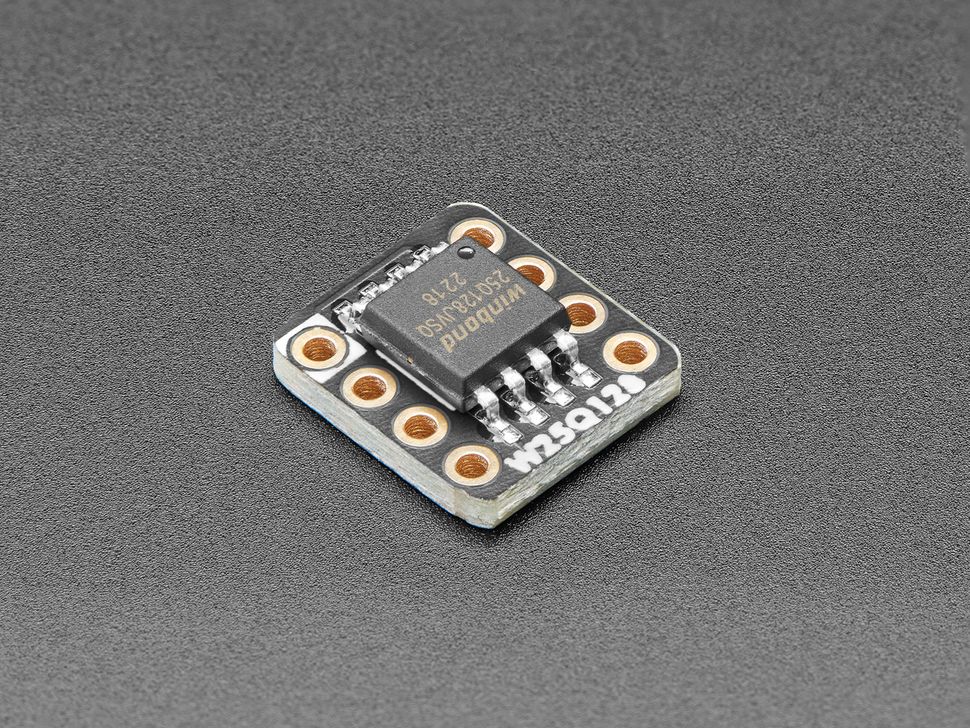

Modern microcontrollers like RP2040, ESP32, STM32, and NXP RT series often rely on external QSPI Flash to store firmware and assets, reducing BOM cost while still delivering excellent performance through quad-SPI and caching. This Adafruit W25Q128 QSPI Flash Breakout makes prototyping easy by converting an SOIC-8 QSPI Flash chip into a breadboard-friendly 0.3″ DIP format.
Based on the W25Q128JVSSIQ, this board provides 128 Mbit (16 MB) of 3.3 V QSPI Flash with the Quad Enable bit permanently set, so it works out of the box in QSPI mode. Ideal for testing different flash sizes or adding extra storage to microcontroller projects without custom PCB work.
Specification
| Specification | Details |
|---|---|
| Flash Memory Size | 128 Mbit (16 MB) |
| Flash Chip | W25Q128JVSSIQ (Quad Enable bit set) |
| Interface | SPI / Quad SPI (QSPI) |
| Operating Voltage | 3.3 V |
| Logic Level | 3.3 V compatible |
| Package | SOIC-8 mounted on 0.3″ DIP breakout |
| QSPI Support | Yes, works out of the box |
| SPI Mode Notes | IO2 and IO3 can be tied to 3.3 V |
| Compatible MCUs | RP2040, ESP32, STM32, NXP RT series |
| Breadboard Friendly | Yes |

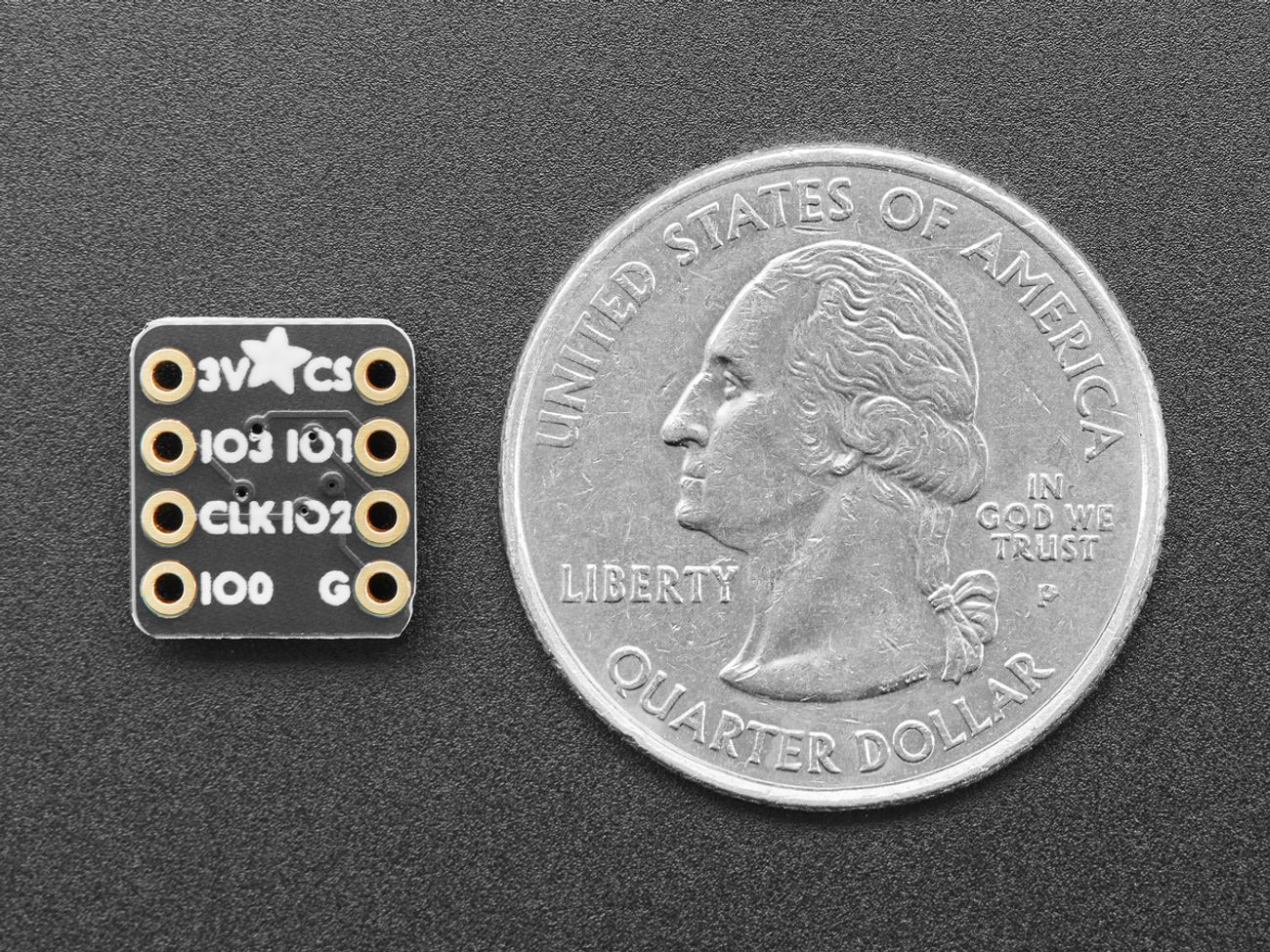

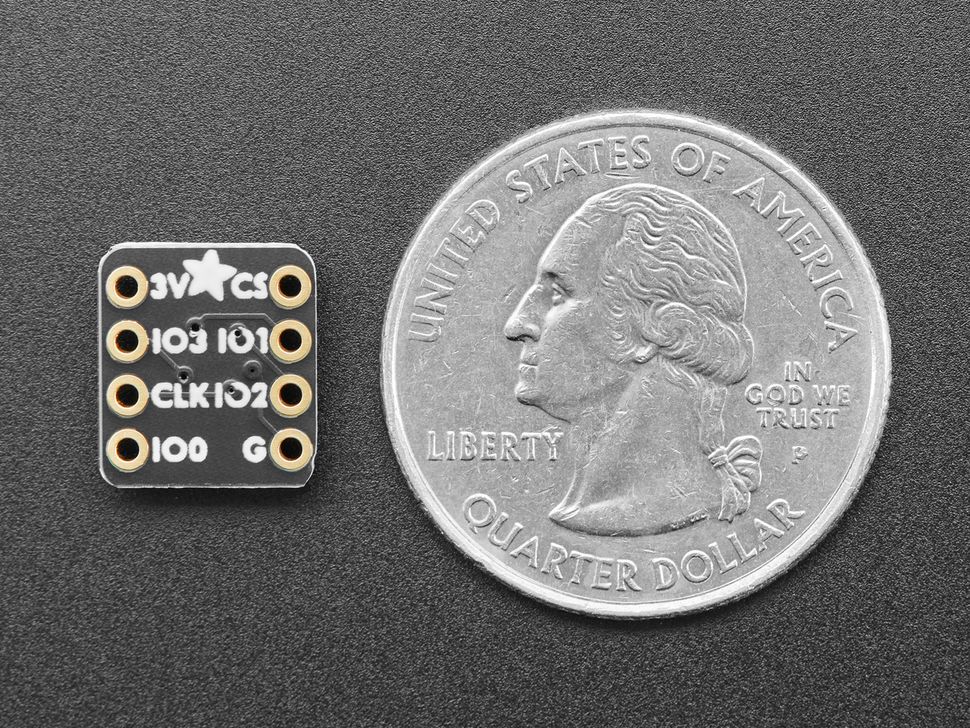

Pinout
| 3V | 3.3V power supply |
|---|---|
| CS | Chip Select (active low) |
| IO3 | QSPI IO3 / HOLD# (unused in SPI mode) |
| IO1 | QSPI IO1 / MISO |
| CLK | SPI / QSPI clock |
| IO2 | QSPI IO2 / WP# (unused in SPI mode) |
| IO0 | QSPI IO0 / MOSI |
| G | Ground |
