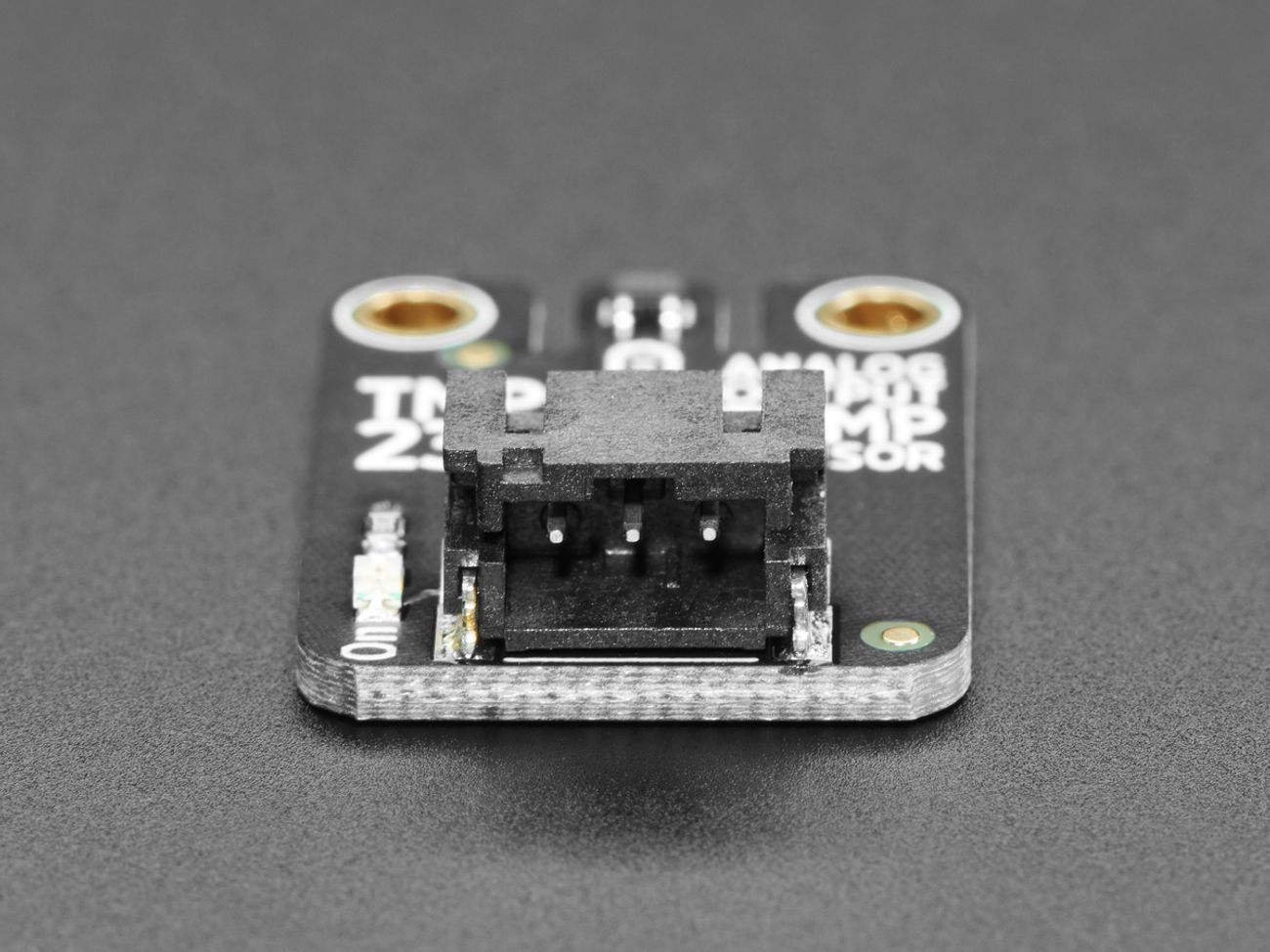

Adafruit TMP235 Plug-and-Play STEMMA Analog Temperature Sensor

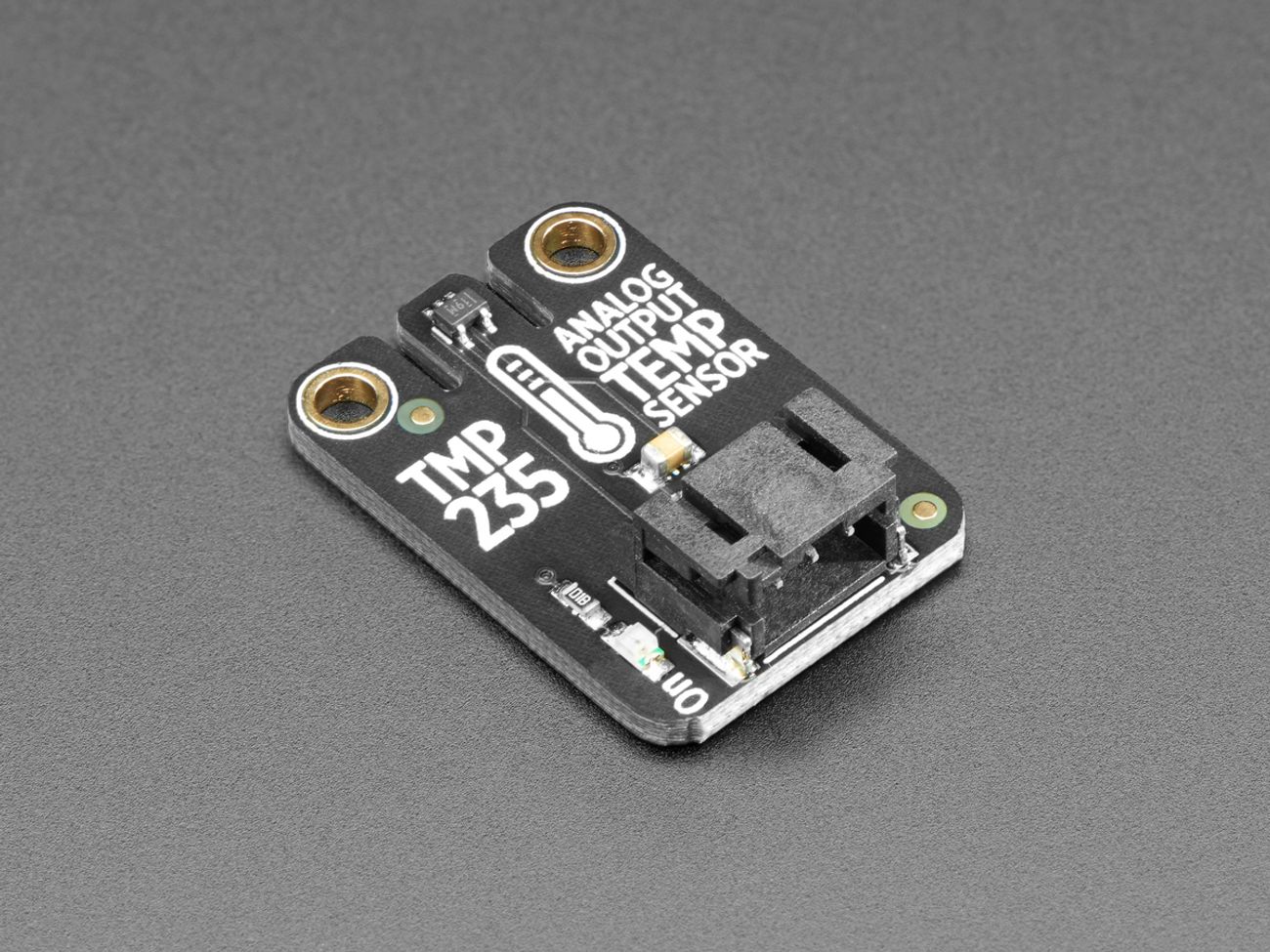

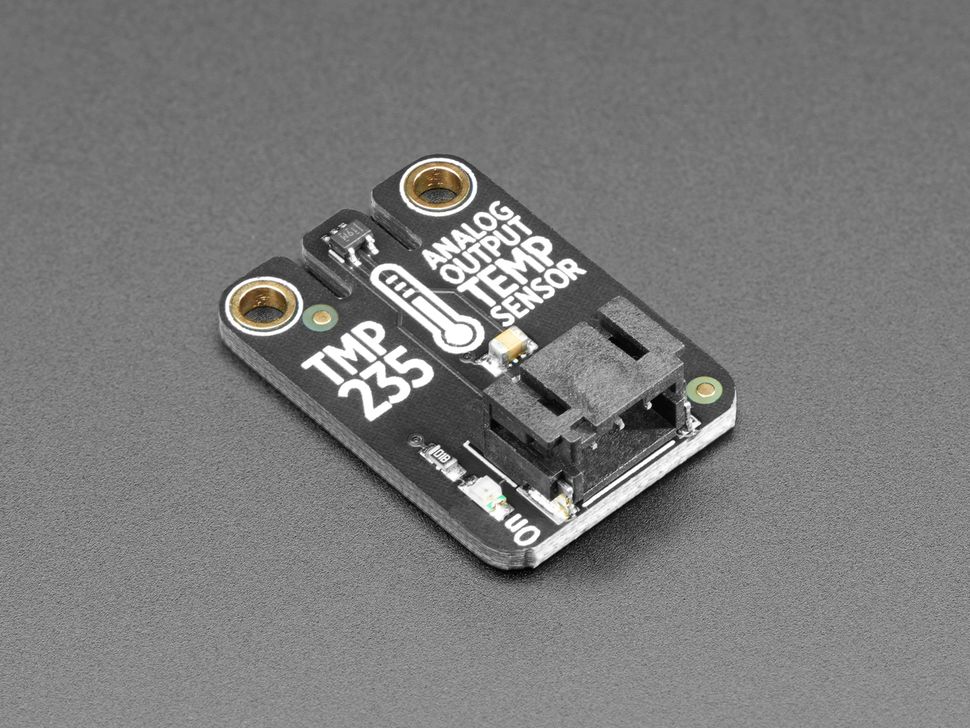

Overview

Adafruit TMP235 - Plug-and-Play STEMMA Analog Temperature Sensor is a simple way to add temperature sensing to your project without dealing with digital protocols, libraries, or configuration registers. It works much like the familiar TMP36, but comes on a breakout with a 3-pin JST PH STEMMA connector for quick wiring.

This is an analog output sensor, so it is best suited for microcontrollers that provide an analog input pin. Just connect power, ground, and the signal line, then read the output voltage and convert it directly to temperature in Celsius.

The board accepts 3V to 5V DC power. For many Arduino-compatible boards, especially an Arduino UNO, improved readings can be achieved by using a stable analog reference such as 3.3V connected to AREF. Please note: this board uses a 3-pin JST PH cable, and the cable is not included.

Specification

Technical details for Adafruit TMP235 Plug-and-Play STEMMA Analog Temperature Sensor.

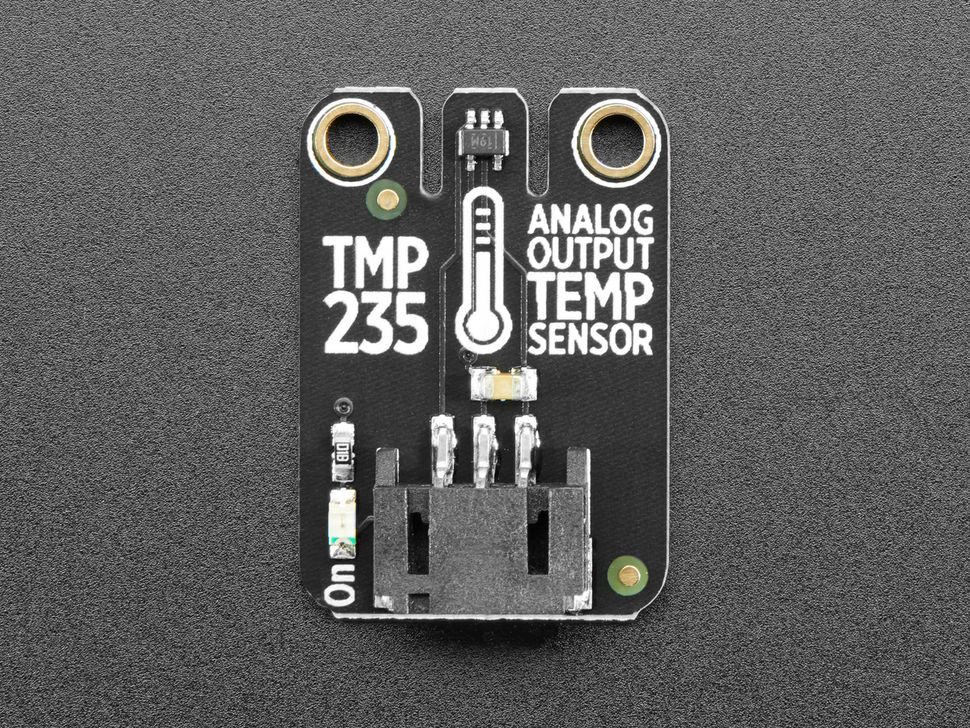

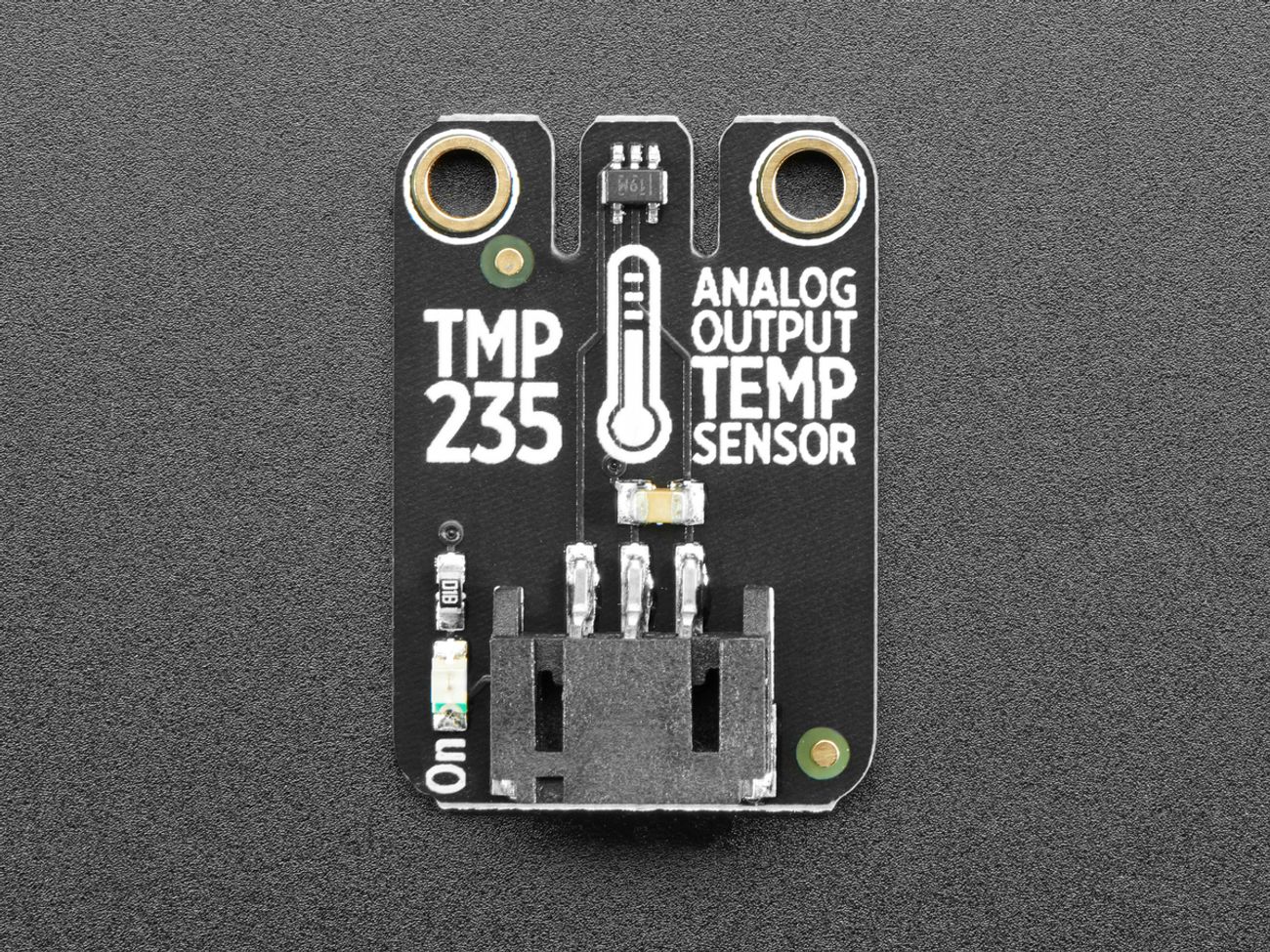

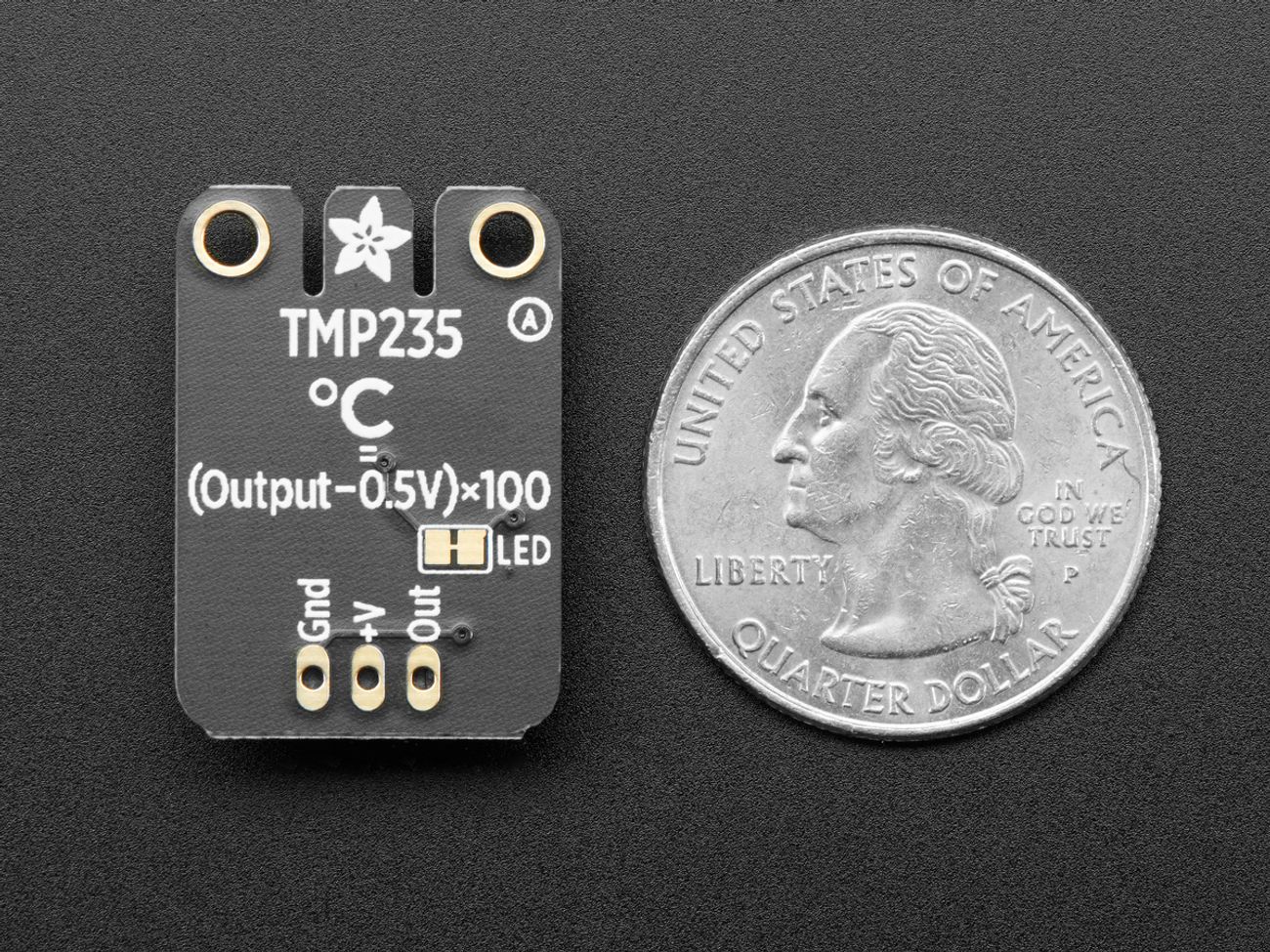

Pinout

Getting Started

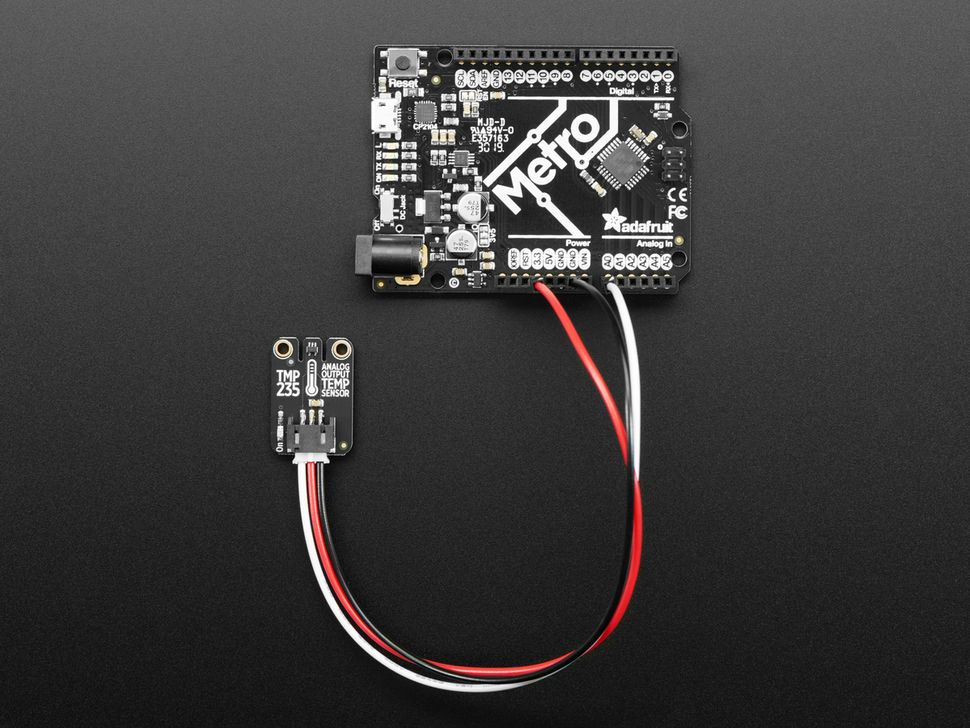

Plug the sensor into a compatible 3-pin JST PH cable, power it from 3V to 5V, and route the white signal wire to an analog input. Read the sensor voltage and apply the conversion formula to get the temperature in °C.

Compatible cable styles mentioned for use include 3-pin JST PH cables with header ends and versions with alligator clips.
