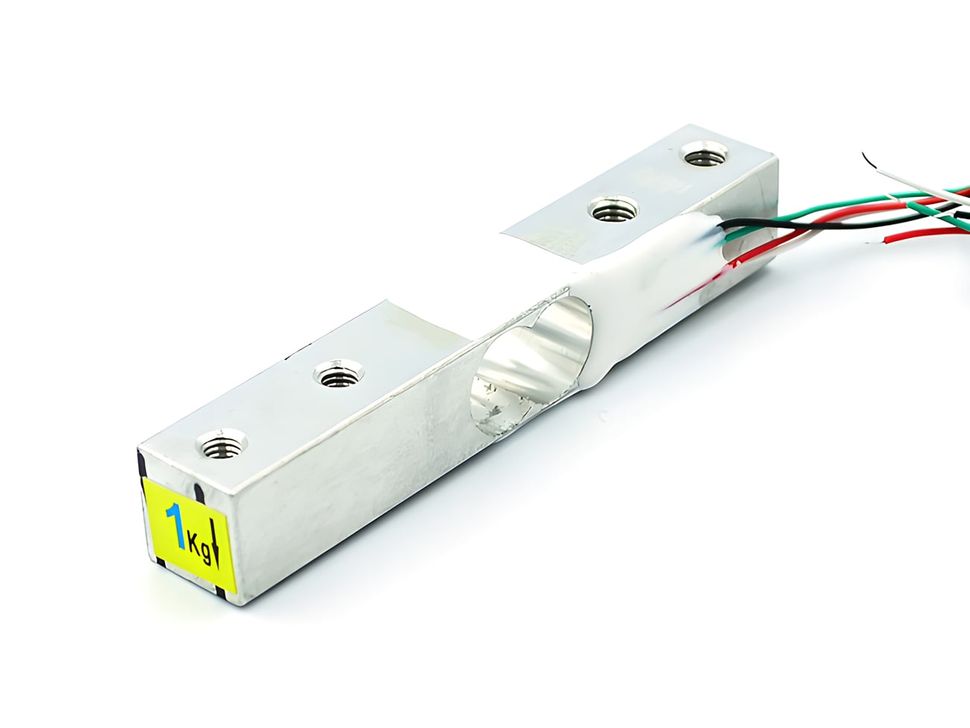

This 1Kg Strain Gauge Load Cell is ideal for electronic weighing scales, force measurement, and industrial automation applications. It operates using the strain gauge principle and comes with four wires for easy integration into a Wheatstone bridge configuration.
With a full-scale accuracy of ±0.05% and excellent temperature stability, this load cell ensures reliable and repeatable measurements in small devices.
Specification
Technical details for 1Kg Strain Gauge Load Cell.
| Specification | Details |
|---|---|
| Operating Voltage | 5~10V DC |
| Output Sensitivity | 1.0 ± 0.1mV/V |
| Zero Output | ±0.1mV/V |
| Non-linearity | 0.05% F.S |
| Hysteresis | 0.05% F.S |
| Repeatability | 0.05% F.S |
| Creep (3 minutes) | 0.05% F.S |
| Output Resistance | 1000 ± 5% Ω |
| Zero Temperature Drift | 0.05% F.S / 10°C |
| Temperature Drift of Sensitivity | 0.05% F.S / 10°C |
| Dimensions | 80 x 12.7 x 12.7 mm |
Pinout
Pinout for 1Kg Strain Gauge Load Cell.
| Wire Color | Description |
|---|---|
| Red | Power supply wire |
| Black | Ground |
| White | Signal positive |
| Green | Signal negative |
