SKU: TH1241

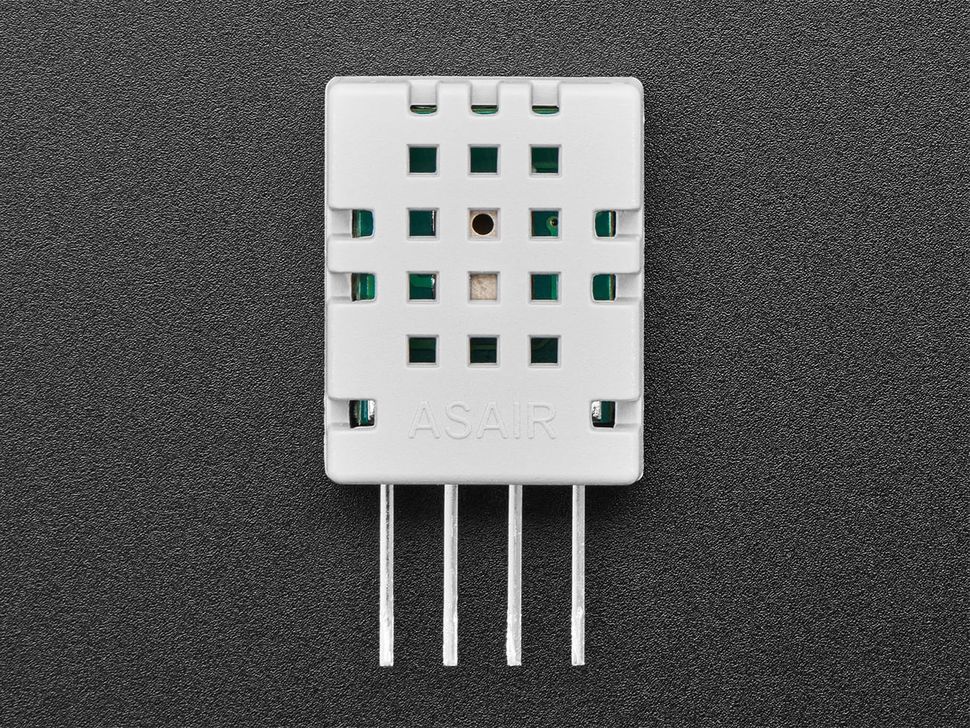

AGSO2MA is a high-performance TVOC sensor which is equipped with a dedicated ASIC chip, designed for detection and monitoring of total volatile organic compounds (TVOCs).
Sold Out!
We will notify you when this item is back in stock. Please enter your email.
AGSO2MA is a high-performance TVOC sensor which is equipped with a dedicated ASIC chip, designed for detection and monitoring of total volatile organic compounds (TVOCs).
It ensures exceptional reliability, long-term stability, and low power consumption with an operating voltage of 3.3~5.5V DC @ 28士5mA of current. Its high sensitivity makes it ideal for large-scale applications requiring precise and consistent air quality monitoring.
The AGSO2MA sensor detects a wide range of organic volatile gases, including ethanol, ammonia, sulfides, benzene vapors, and smoke.
Each sensor is fully factory calibrated and tested to meet the large-scale applications and accuracy.
Technical specification for AGS02MA TVOC I2C gas sensor.
| Model | AGS02MA |
|---|---|
| Operating Voltage | 3.3~5.5V DC |
| Operating Current | 28士5mA |
| Typical Power Consumption | [email protected]; 130mW@5V |
| Sampling Period | ≥ 25 |
| Output Mode | IC slave mode (<30kHz) |
| Preheating Time | ≥ 120 s |
| Operating Temperature | 0~50°C |
| Operating Humidity | 0~95%RH |
| Life Span | >5 years (@25°C, Clean Air) |
| Sensor Category | Semiconductor Sensor |
| Measuring Range | 0~99999 ppb |
| Typical Accuracy (25°C/50%RH) | 25% Reading |
| Standard Test Gas | Ethanol |

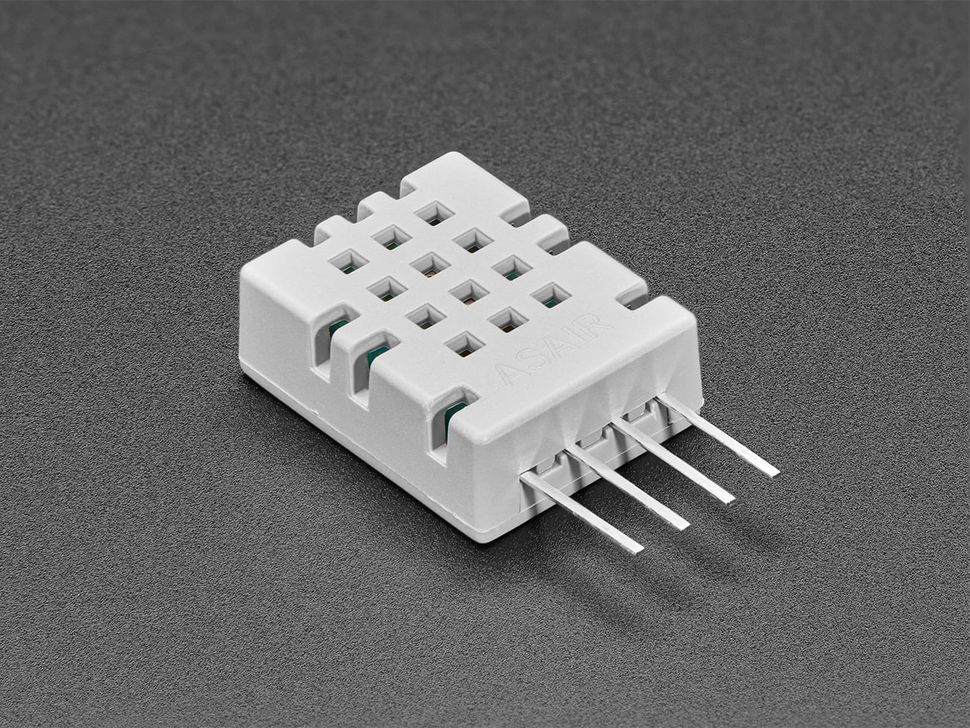

Pinout for AGS02MA TVOC I2C gas sensor.
| Pin | Name | Function |
|---|---|---|
| 1 | VDD | Power Supply |
| 2 | SDA | Serial Data |
| 3 | GND | Ground |
| 4 | SCL | Serial Clock |
