T16-S Mini Track Actuator with Limit Switches 100mm 256:1 12 volts

Actuonix
SKU: TH0014 MPN: T16-100-256-12-S
$80.00 In Stock
Ships Today - If you order within hrs mins!


Quality
First

Awesome
Support

Secure
Checkout

Worldwide
Shipping

Out of Stock!

We will email you when this item is back in stock. Please enter your email

Overview

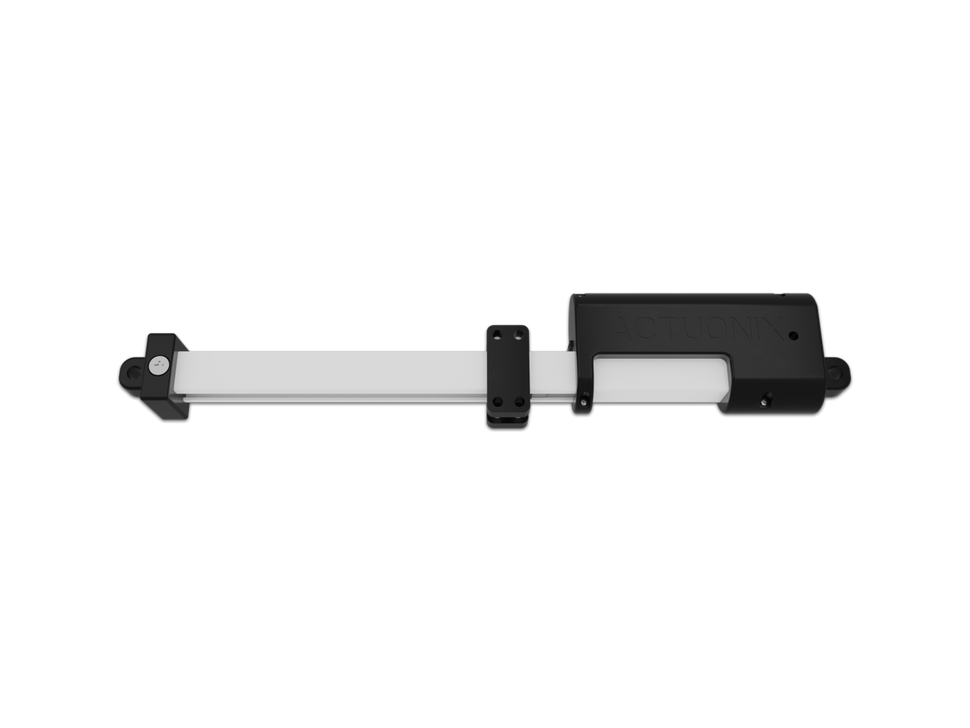

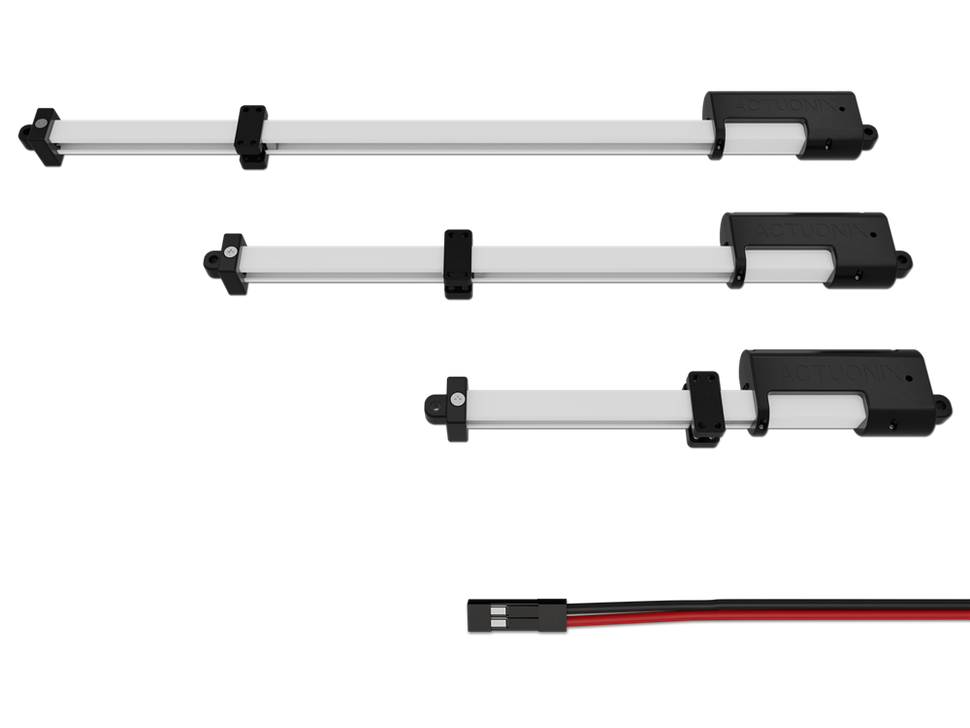

Actuonix Motion Devices unique line of Miniature Linear Actuators enables a new generation of motion-enabled product designs, with capabilities that have never before been combined in a device of this size. These linear stepper actuators are a superior alternative to designing your own push/pull mechanisms. The P8 stepper actuators are complete, self-contained linear motion devices. Several stroke length options allow these to fit a wide variety of applications. The T16 actuators are complete, self-contained linear motion devices with position feedback for sophisticated position control capabilities, or end of stroke limit switches for simple two position automation. Several gear ratios are available to give you varied speed/force configurations.

The T16 is designed to push or pull a load along its full stroke length. The speed of travel is determined by the load and mount angle (See the Load Curves). Actuator speed can be reduced by lowering the drive voltage. When power is removed the actuator will hold its position, unless the applied load exceeds the back drive force. Repeated stalling or stalling for more than a few seconds will shorten the life of the actuator significantly. Actuators should be tested in each specific application to determine their effective life under those loading conditions and environment.

Whats in the Box?

Whats included in the box?

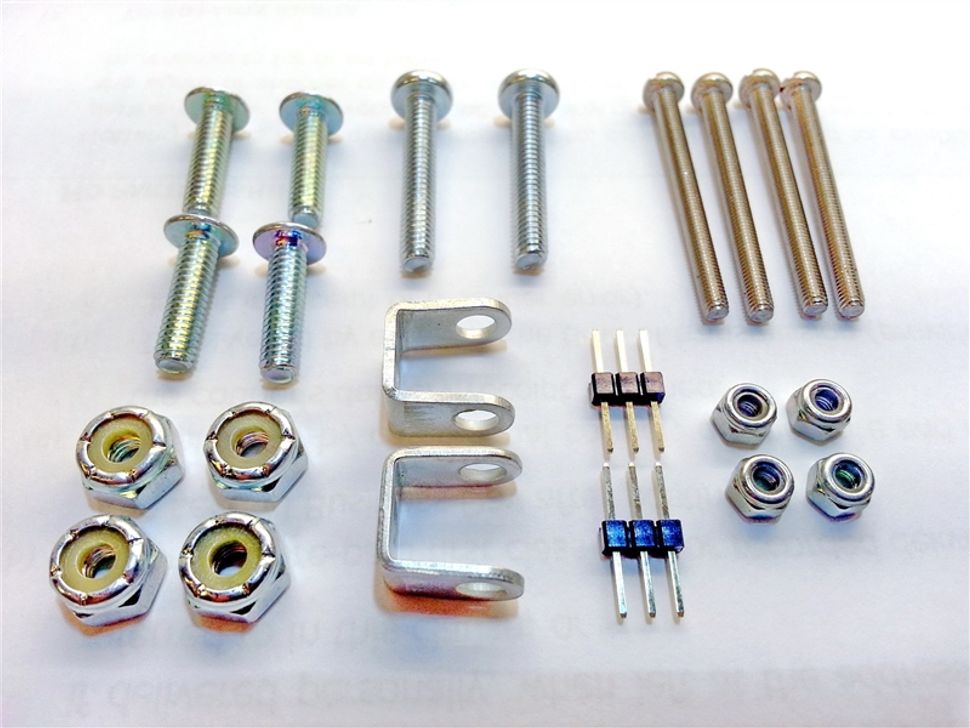

  • T16 Mini Track Actuator with Limit Switches
  • Mounting Screws and Nuts, etc.
Downloads

SPECIFICATION

Actuator specification

  • Manufacturer Part Number
    T16-100-256-12-S
  • Peak Power Point
    250N @2.5mm/s
  • Peak Efficiency Point
    150N @3.4mm/s
  • Max Speed (no load)
    4.8mm/s
  • Max Force (lifted)
    300N
  • Back Drive Force (static)
    >500N
  • Mass
    116g
  • Closed Length (hole to hole)
    200mm
  • Feedback Potentiometer
    11kΩ±50%
  • Feedback Linearity
    Less than 2.00%
  • Input Voltage
    0-15 VDC. Rated at 12VDC.
  • Stall Current
    1000mA @ 12V
  • Operating Temperature
    -10°C to +50°C
  • Max Duty Cycle
    20%
  • Audible Noise
    62dB @ 45cm
  • Ingress Protection
    None
  • Current Leakage
    8uA
  • Mechanical Backlash
    0.3mm
  • Maximum Static Force
    500N
