Overview
Actuonix's unique line of Miniature Linear Actuators enables a new generation of motion-enabled product designs, with capabilities that have never before been combined in a device of this size. These tiny linear actuators are a superior alternative to designing your own push/pull mechanisms. Their low cost and easy availability make them attractive to hobbyists and OEM designers alike.

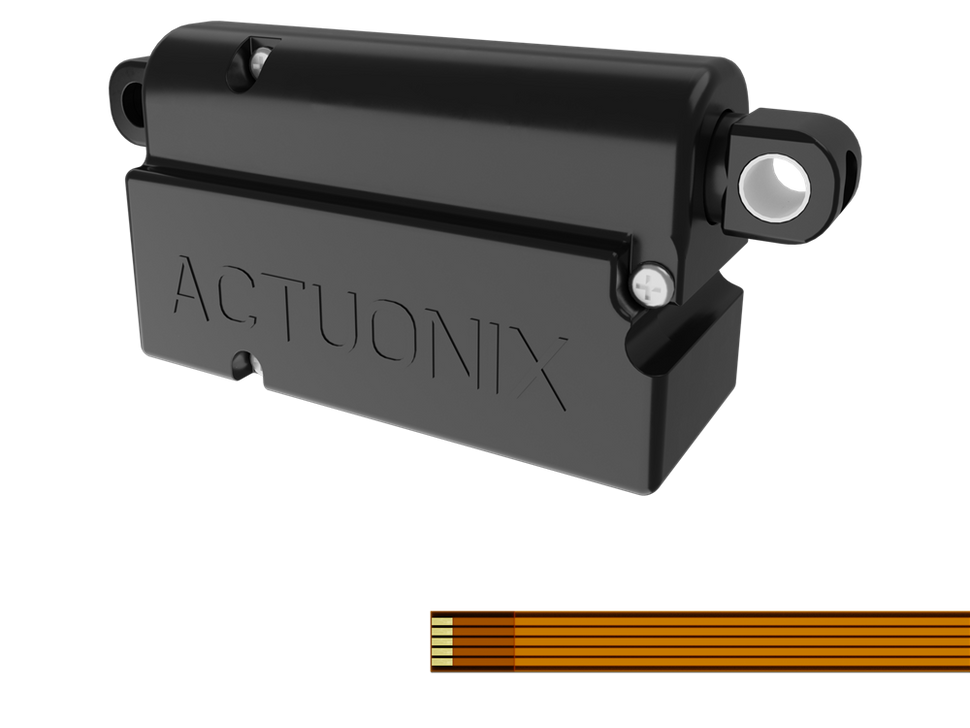

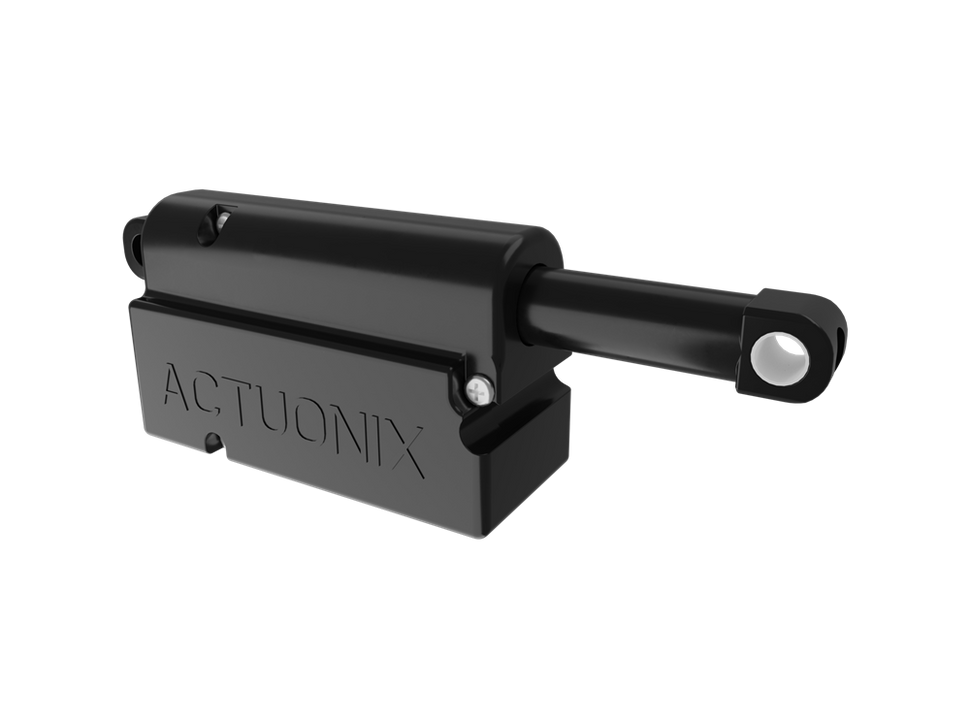

The PQ12 actuators are complete, self contained linear motion devices with position feedback for sophisticated position control capabilities, or end of stroke limit switches for simple two position automation. Driving them couldn’t be easier, simply apply a DC voltage to extend the actuator, and reverse the polarity to retract it. Several gear ratios and voltage options are available to give you varied speed/force configurations.
Whats in the Box?
Whats in the Box?
Whats included in the box?
- PQ12 Actuator with Limit Switches
- Mounting Screws and Nuts, etc.
Downloads
SPECIFICATION
Actuator specification
- Manufacturer Part Number
PQ12-63-12-S - Peak Power Point
30N @ 8mm/s - Peak Efficiency Point
12N @ 12mm/s - Max Speed (no load)
15mm/s - Max Force (lifted)
45N - Back Drive Force (static)
25N - Stroke
20mm - Mass
19g - Position Repeatability
±0.1mm - Max Side Load (extended)
10N - Feedback Potentiometer
5kΩ±50% - Input Voltage
12V - Stall Current
210mA @12V - Operating Temperature
-10°C to +50°C - Max Duty Cycle
20% - Audible Noise
55dB @ 45cm - Ingress Protection
IP-54 - Mechanical Backlash
0.25 mm
