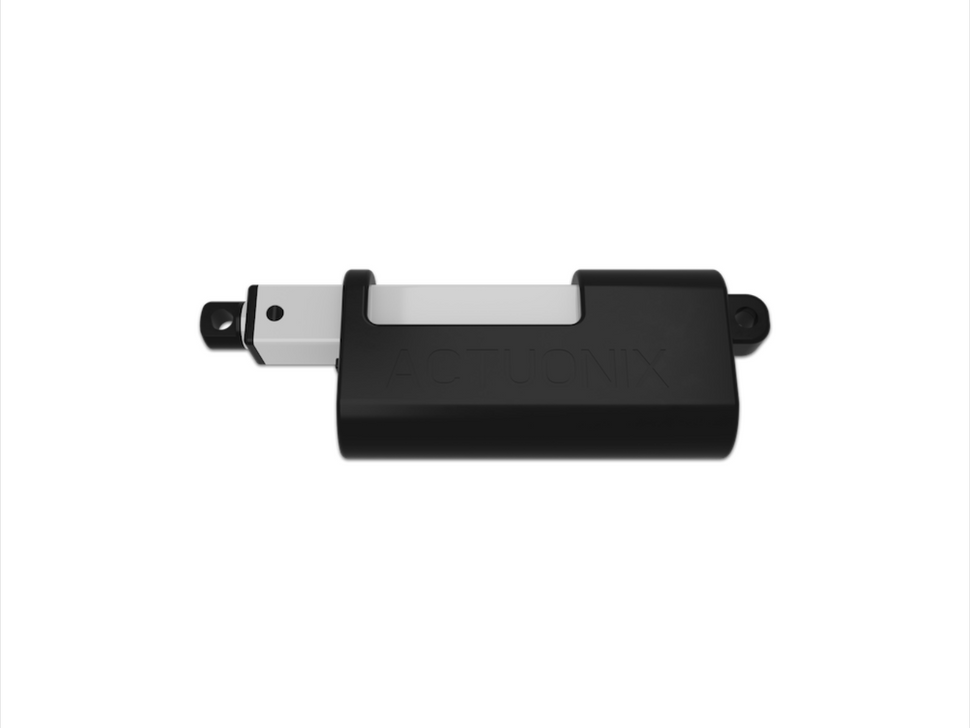

P16-P Linear Actuator with Feedback 50mm 64:1 12 volts
SKU: TH0064
Backorder₹10,725.02
₹9,089.00 (Ex. of GST)
SKU: TH0065
Actuonix's unique line of Miniature Linear Actuators enables a new generation of motion-enabled product designs, with capabilities that have never before been combined in a device of this size. These linear actuators are a superior alternative to designing your own push/pull mechanisms. The P16 actuators are complete, self-contained linear motion devices with position feedback for sophisticated position control capabilities, or end of stroke limit switches for simple two position automation. Several gear ratios are available to give you varied speed/force configurations. The parallel design makes the P16 significantly shorter than the same stroke length L16, but the most attractive feature of this model is its high cycle life. Premium components in this model include: large sealed stainless steel bearings, planetary gearbox, stainless steel lead screw, and glass re-enforced nylon housing.
| Qty | Price | Save |
|---|---|---|
| 1 - 1 | ₹10,725.02 | - |
| 2 - 4 | ₹10,403.27 | 3% |
| 5 - 9 | ₹10,188.77 | 5% |
| 10+ | ₹9,867.02 | 8% |
Actuonix's unique line of Miniature Linear Actuators enables a new generation of motion-enabled product designs, with capabilities that have never before been combined in a device of this size. These linear actuators are a superior alternative to designing your own push/pull mechanisms. The P16 actuators are complete, self-contained linear motion devices with position feedback for sophisticated position control capabilities, or end of stroke limit switches for simple two position automation. Several gear ratios are available to give you varied speed/force configurations. The parallel design makes the P16 significantly shorter than the same stroke length L16, but the most attractive feature of this model is its high cycle life. Premium components in this model include: large sealed stainless steel bearings, planetary gearbox, stainless steel lead screw, and glass re-enforced nylon housing.
This model of actuator belongs to Actuaonix P16-P Series which includes an Internal Position Controller. All we need to do do is to provide an input with the position to which the actuator is desired and the Actuator will move to the commanded position. It is compatible with RC Receivers, Arduino, Microcontroller, PLC Analog 0-5V or 4-20mA systems. It also gives out analog position output.

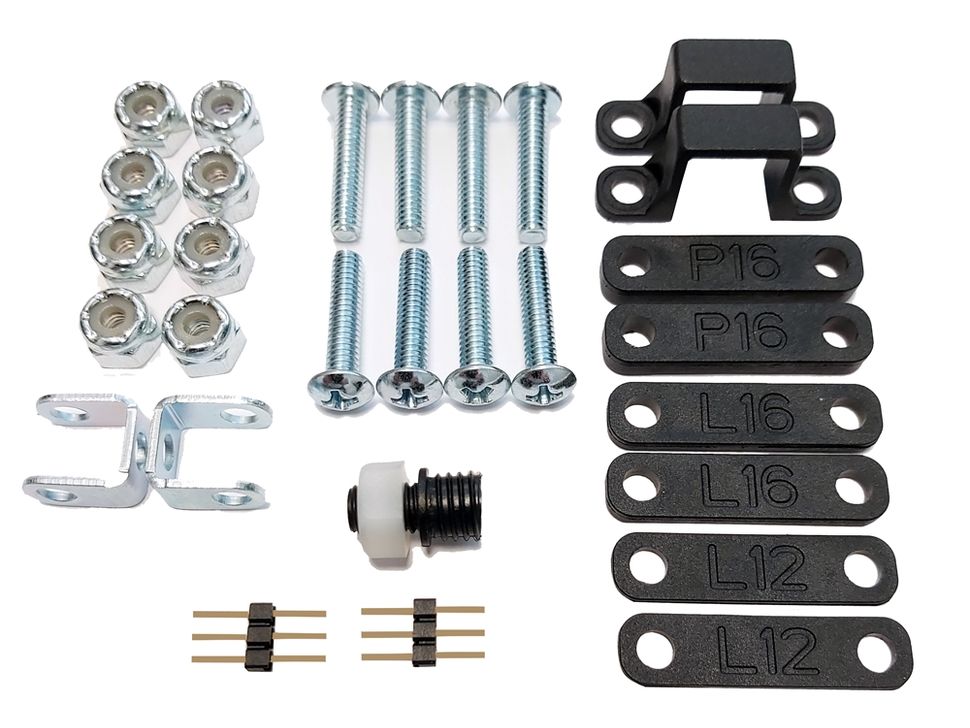

Whats included in the box?
Actuator specification
Actuonix Motion Devices build micro linear actuators and linear servos. Based in Victoria, BC, Canada, they provide innovative and economical micro motion solutions for the growing needs of several markets including robotics, aerospace, automotive, medical and radio control. Actuonix is a leading manufacturer and innovator in the micro motion marketplace. They offer the most affordable, high quality micro linear actuators.
