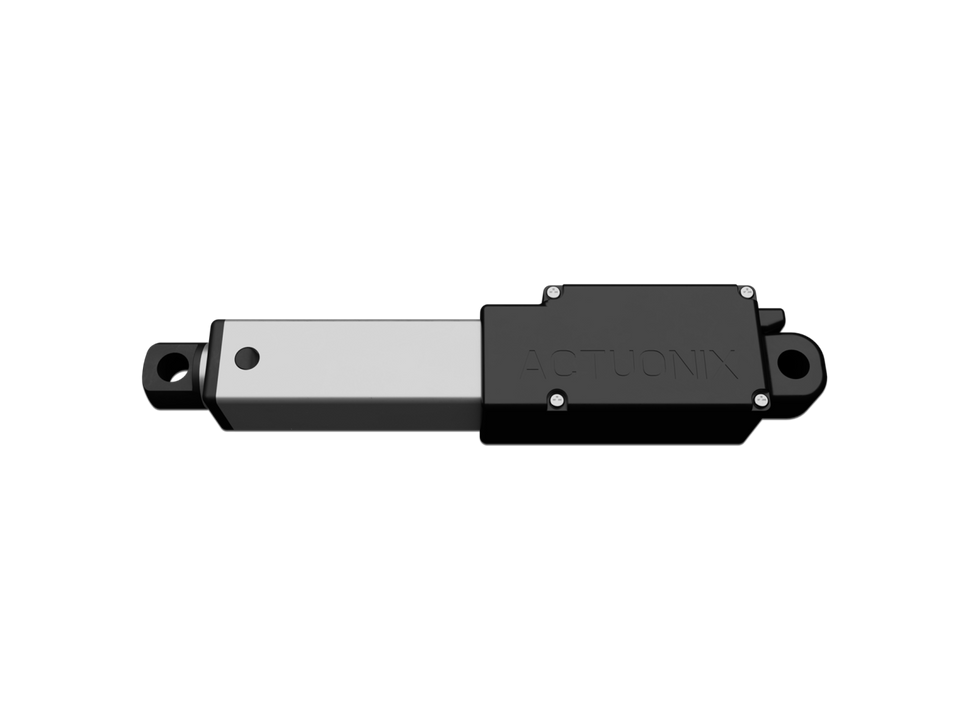

L16-S Miniature Linear Actuator with Limit Switches 30mm 35:1 12 volts

Actuonix
SKU: TH0080 MPN: L16-30-35-12-S
$70.00 In Stock
Ships Today - If you order within hrs mins!


Quality
First

Awesome
Support

Secure
Checkout

Worldwide
Shipping

Out of Stock!

We will email you when this item is back in stock. Please enter your email

Overview

Actuonix’s unique line of Miniature Linear Actuators enables a new generation of motion-enabled product designs, with capabilities that have never before been combined in a device of this size. This L16-S 30mm 35:1 12V linear actuator is a superior alternative to designing your own push/pull mechanisms.

The L16 actuators are complete, self contained linear motion devices with position feedback for sophisticated position control capabilities, end of stroke limit switches for simple two position automation, or RC servo. Several gear ratios are available to give you varied speed/force configurations.

This L16-P actuator is controlled with a potentiometer feedback. It can be used with a compatible DC motor position controller to allow movement to any required position.

Whats in the Box?

Whats included in the box?

  • L16 Actuator with Limit Switches
  • Mounting Screws and Nuts, etc.
Downloads

SPECIFICATION

Actuator specification

  • Manufacturer Part Number
    L16-30-35-12-S
  • Peak Power Point
    50N @16mm/s
  • Peak Efficiency Point
    24N @24mm/s
  • Max Speed (no load)
    32mm/s
  • Max Force (lifted)
    50N
  • Back Drive Force (static)
    31N
  • Feedback Linearity
    Less than 2.00%
  • Input Voltage
    12V
  • Stall Current
    650mA @ 12V
  • Operating Temperature
    -10°C to +50°C
  • Max Duty Cycle
    20%
  • Audible Noise
    60dB @ 45cm
  • Ingress Protection
    IP-54
  • Mechanical Backlash
    0.25mm
  • Maximum Static Force
    250N

ABOUT Actuonix



Actuonix Motion Devices build micro linear actuators and linear servos. Based in Victoria, BC, Canada, they provide innovative and economical micro motion solutions for the growing needs of several markets including robotics, aerospace, automotive, medical and radio control. Actuonix is a leading manufacturer and innovator in the micro motion marketplace. They offer the most affordable, high quality micro linear actuators.
