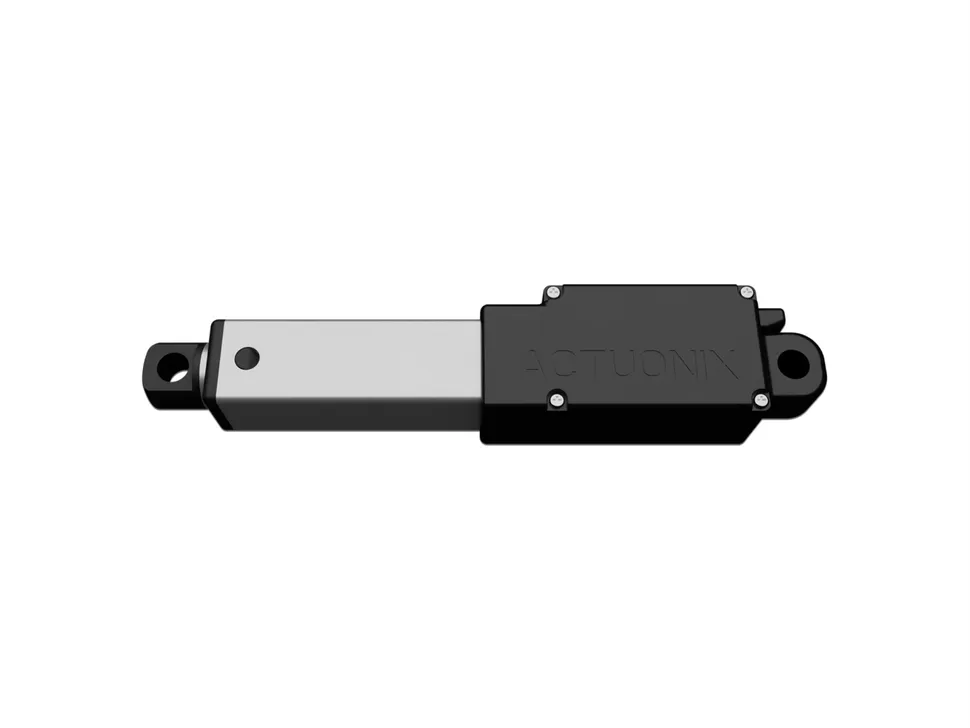

L12-P Micro Linear Actuator with Position Feedback 30mm 100:1 6 volts

$80.00

Actuonix's unique line of Miniature Linear Actuators enable a new generation of motion-enabled product designs, with capabilities that have never before been combined in a device of this size. This L12-P...

Vendor: Actuonix SKU: THB-L12-30-100-6-PCategories: Actuators Tags: actuator
Description

Actuonix's unique line of Miniature Linear Actuators enable a new generation of motion-enabled product designs, with capabilities that have never before been combined in a device of this size. This L12-P 30mm 100:1 6V small linear actuator is a superior alternative to designing with awkward gears, motors, servos, and linkages. Actuonix’s L series of micro linear actuators combine the best features of the existing micro actuator families into a highly flexible, configurable, and compact platform with an optional sophisticated on-board microcontroller. The first member of the L series, the L12, is an axial design with a powerful drive-train and a rectangular cross section for increased rigidity. But by far the most attractive feature of this actuator is the broad spectrum of available configurations.

The L12 actuators are complete, self contained linear motion devices with position feedback for sophisticated position control capabilities, end of stroke limit switches for simple two position automation, or RC servo. Several gear ratios are available to give you varied speed/force configurations.

Whats in the Box?

Whats included in the box?

  • L12 Actuator with Internal Controller
  • Mounting Screws and Nuts, etc.
Downloads

SPECIFICATION

Actuator specification

  • Manufacturer Part Number
    L12-30-100-6-P
  • Peak Power Point
    31N @ 7mm/s
  • Peak Efficiency Point
    17N @ 10mm/s
  • Max Speed (no load)
    13mm/s
  • Max Force (lifted)
    42N
  • Back Drive Force (static)
    22N
  • Mass
    34 g
  • Repeatability (-I,-R,-P&LAC)
    ±0.2 mm
  • Max Side Load (extended)
    40N
  • Closed Length (hole to hole)
    82mm
  • Potentiometer (-I, -R, -P)
    3kΩ±50%
  • Input Voltage
    6V
  • Max Input Voltage
    7.5V
  • Stall Current
    460mA
  • Standby Current (-I/-R)
    7.2mA
  • Operating Temperature
    -10 C to +50 C
  • Potentiometer Linearity
    Less than 2.00%
  • Max Duty Cycle
    20%
  • Audible Noise
    55dB @ 45cm
  • Ingress Protection
    IP-54
  • Mechanical Backlash
    0.2mm
  • Maximum Static Force
    200N
