- Product ID: 9018
- MPN: RB-Ard-40

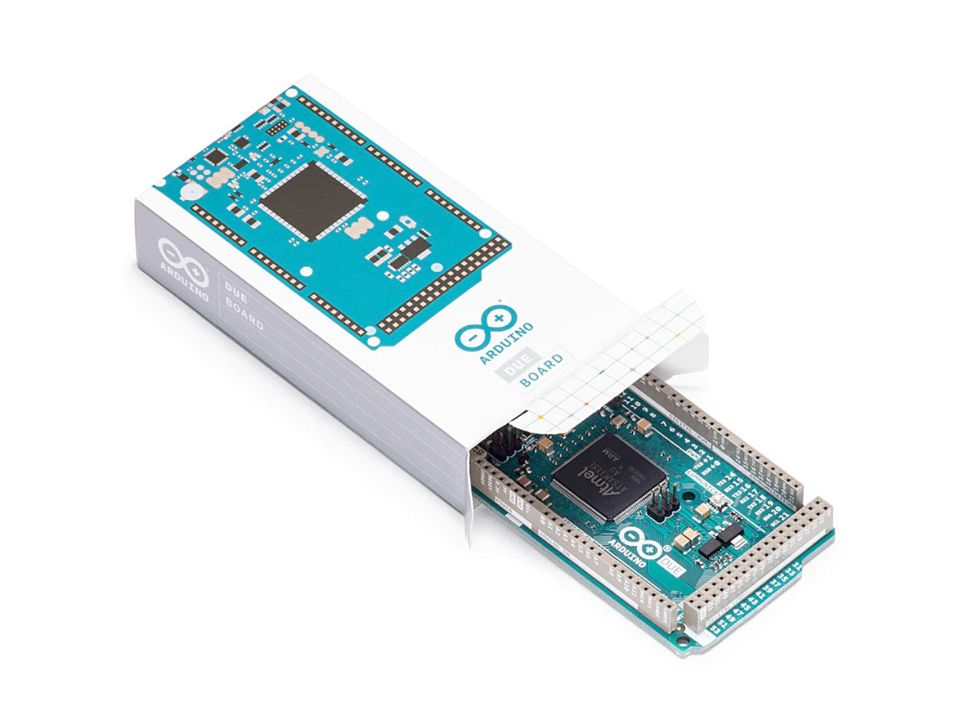

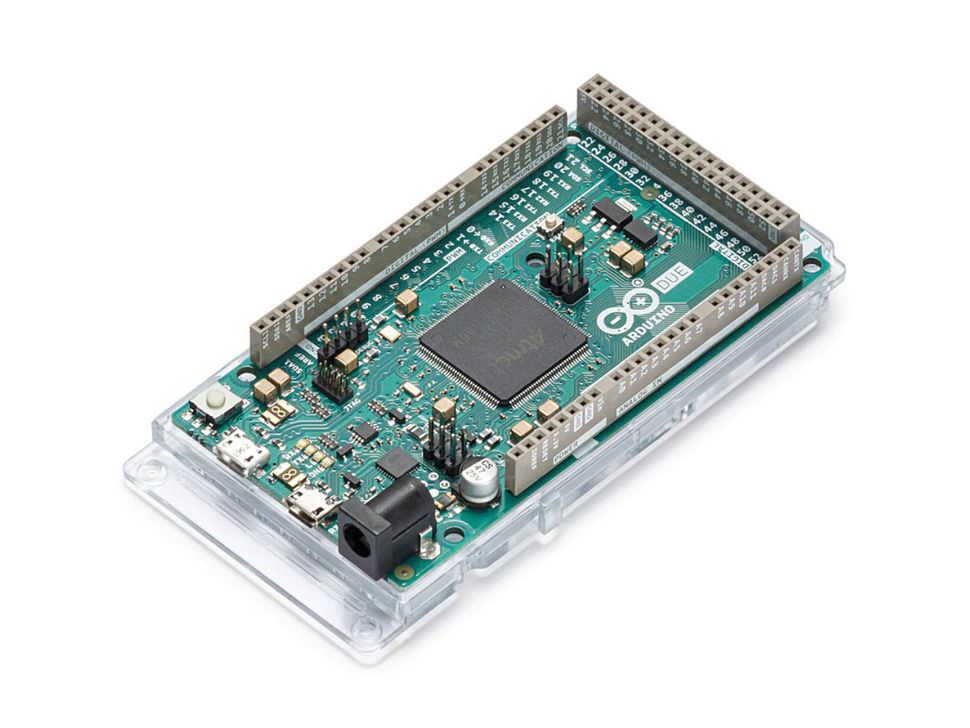

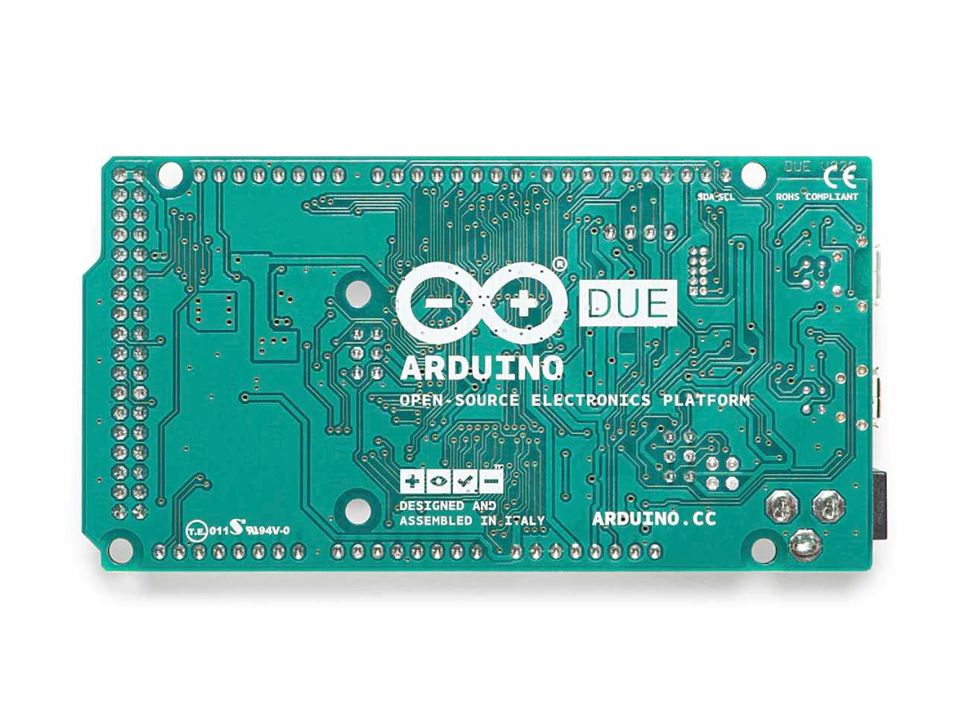

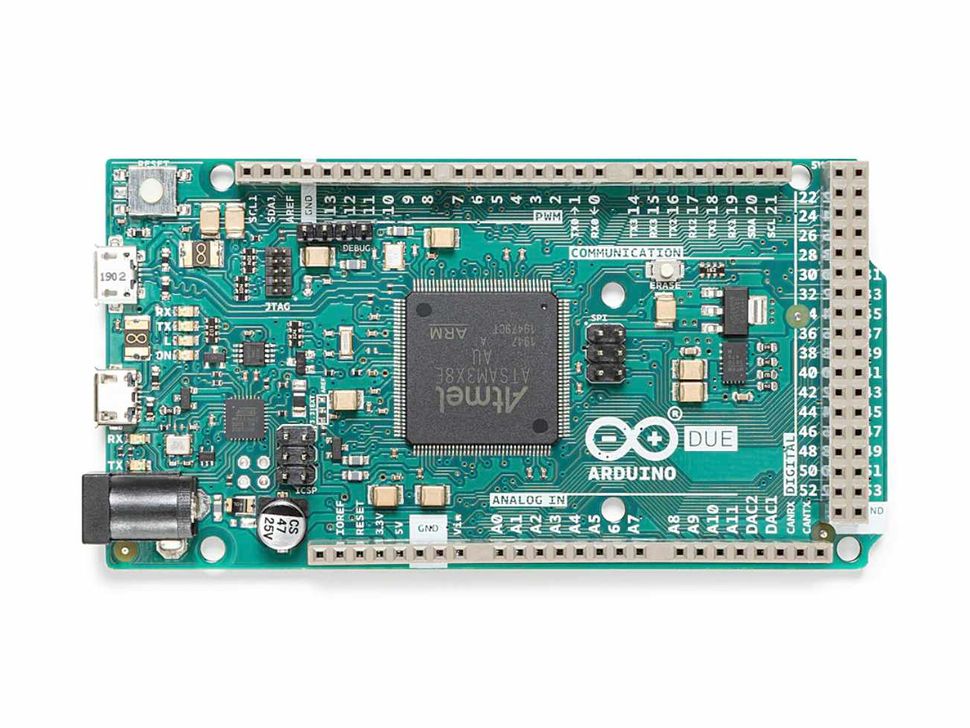

The Arduino Due is a microcontroller board based on the Atmel SAM3X8E ARM Cortex-M3 CPU. It is the first Arduino board based on a 32-bit ARM core microcontroller. It has 54 digital input/output pins (of which 12 can be used as PWM outputs), 12 analog inputs, 4 UARTs (hardware serial ports), a 84 MHz clock, an USB OTG capable connection, 2 DAC (digital to analog), 2 TWI, a power jack, an SPI header, a JTAG header, a reset button and an erase button.
The Due follows the 1.0 pinout:
You can find your board warranty information here.
Unlike most Arduino boards, the Arduino Due board runs at 3.3V. The maximum voltage that the I/O pins can tolerate is 3.3V. Applying voltages higher than 3.3V to any I/O pin could damage the board. The board contains everything needed to support the microcontroller; simply connect it to a computer with a micro-USB cable or power it with an AC-to-DC adapter or battery to get started. The Due is compatible with all Arduino shields that work at 3.3V and are compliant with the 1.0 Arduino pinout.
|Clock Speed||84 MHz|
|SRAM||96 KB (two banks: 64KB and 32KB)|
|Flash Memory||512 KB all available for the user applications|
|DC Current for 5V Pin||800 mA|
|DC Current for 3.3V Pin||800 mA|
|Total DC Output Current on all I/O lines||130 mA|
|Analog Output Pins||2 (DAC)|
|Analog Input Pins||12|
|Digital I/O Pins||54 (of which 12 provide PWM output)|
|Input Voltage (limits)||6-16V|
|Input Voltage (recommended)||7-12V|
