Overview
Measure temperature and humidity with high precision using the genuine Sensirion SHTC3 sensor, offering ±2% RH and ±0.2 °C typical accuracy. Designed for reliable environmental monitoring, this breakout features a true I²C interface (0x70) for simple two-wire integration with microcontrollers and SBCs.
Unlike older SHT series sensors that used custom communication protocols, the SHTC3 provides a standard I²C interface, making firmware development straightforward and clean. It’s ideal for IoT devices, weather stations, indoor air quality monitoring, HVAC systems, smart agriculture, and battery-powered sensor nodes.
To simplify integration, the board includes an onboard 3.3V regulator and level shifting circuitry, allowing safe use with both 3V and 5V systems. Built-in I²C pull-up resistors and decoupling capacitors ensure stable communication and accurate readings.

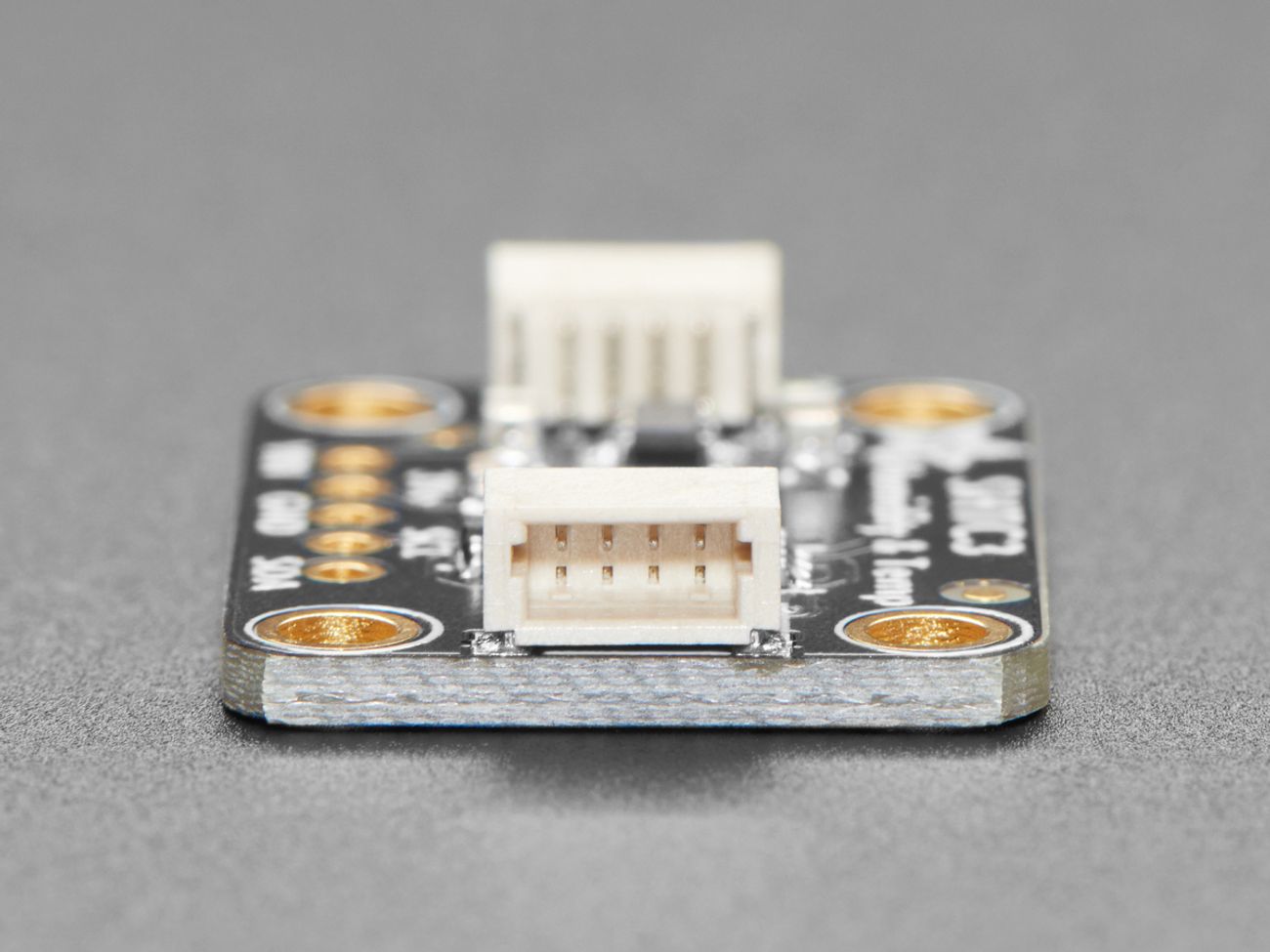

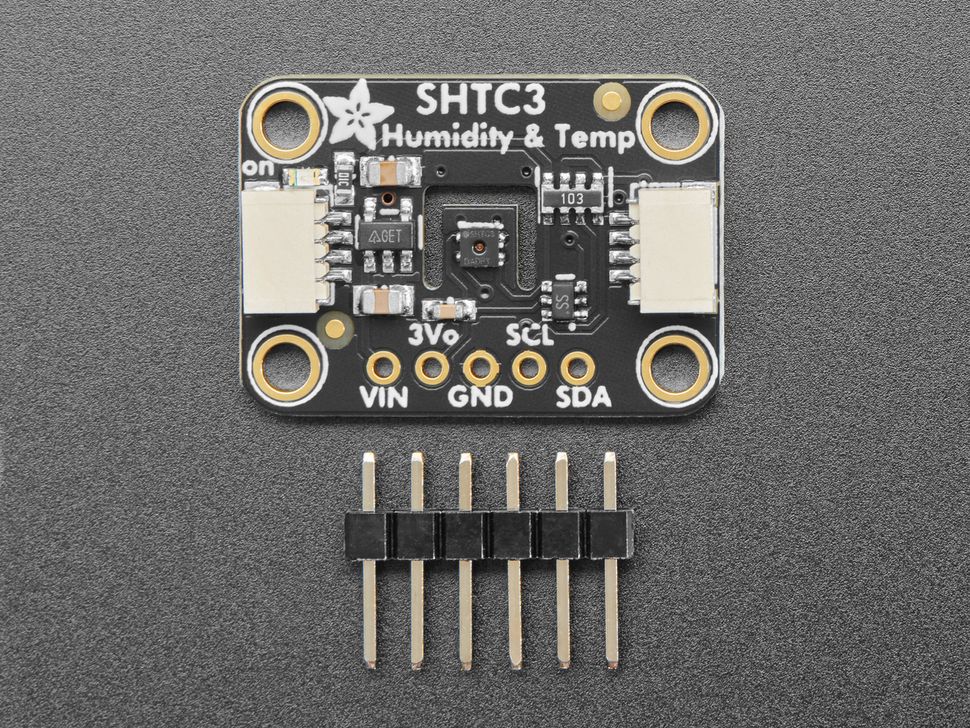

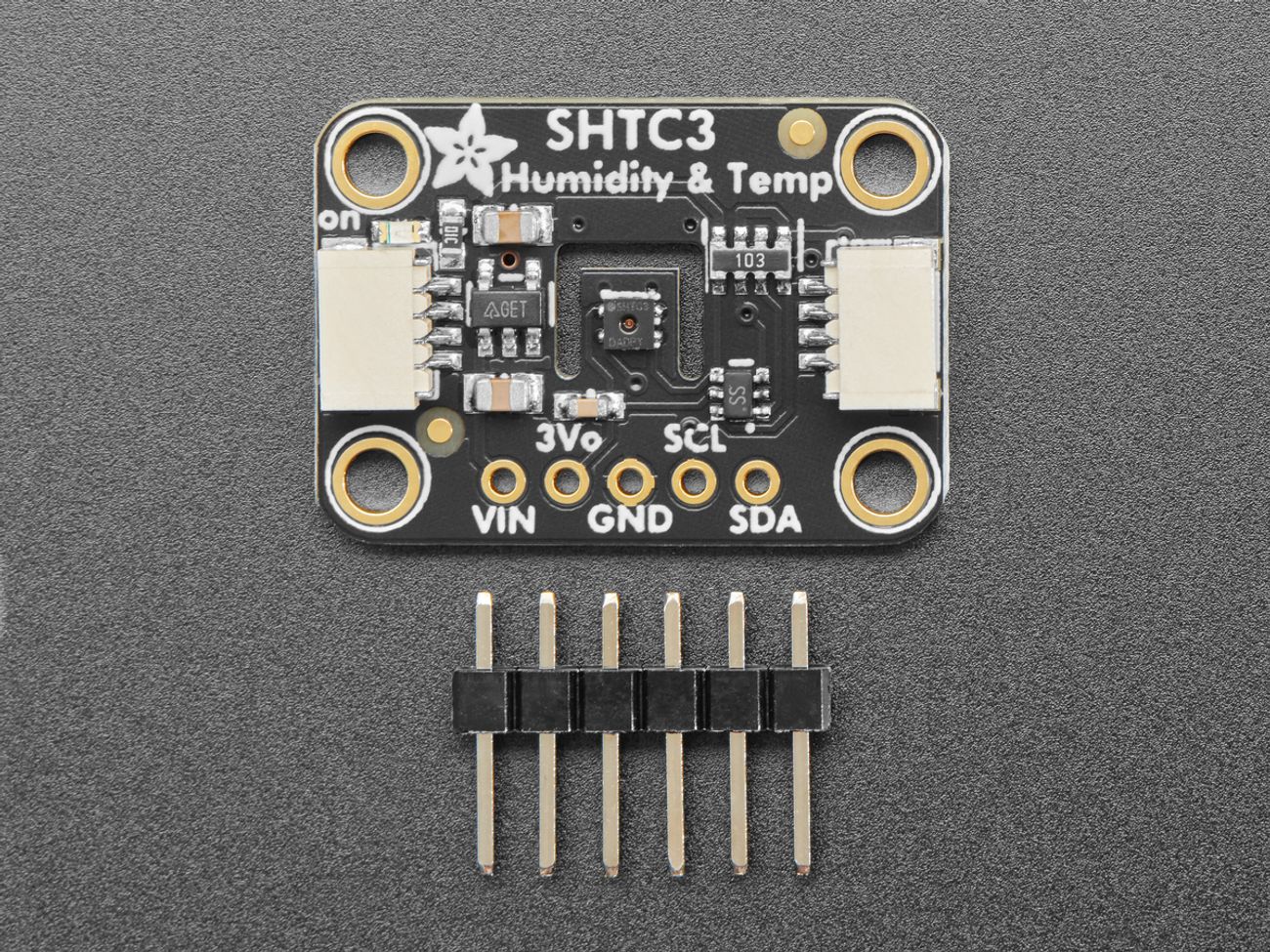

For solder-free connections, the breakout includes dual STEMMA QT / Qwiic connectors, enabling quick plug-and-play wiring. Prefer breadboarding? Standard 0.1" header pads are provided, and a header strip is included for easy soldering.
Specification
Technical details for Adafruit SHTC3 Sensirion Temp Humidity Sensor Breakout Board.
| Specification | Details |
|---|---|
| Sensor IC | Sensirion SHTC3 |
| Humidity Measurement Range | 0 to 100 %RH |
| Temperature Measurement Range | -40 °C to +125 °C |
| Humidity Accuracy (Typical) | ±2 %RH |
| Temperature Accuracy (Typical) | ±0.2 °C |
| Interface | I2C (True I2C Protocol) |
| I2C Address | 0x70 |
| Power Consumption | Ultra-Low Power |
| Power-Up & Measurement Time | ~1 ms |
| Voltage Compatibility | 3V and 5V systems (Onboard regulator & level shifting) |
| Calibration | NIST Traceable |
| Connectors | STEMMA QT / Qwiic (I2C) |
| Board Features | Built-in pull-up resistors, decoupling capacitors |
| Library Support | Arduino, CircuitPython, Python (Raspberry Pi) |

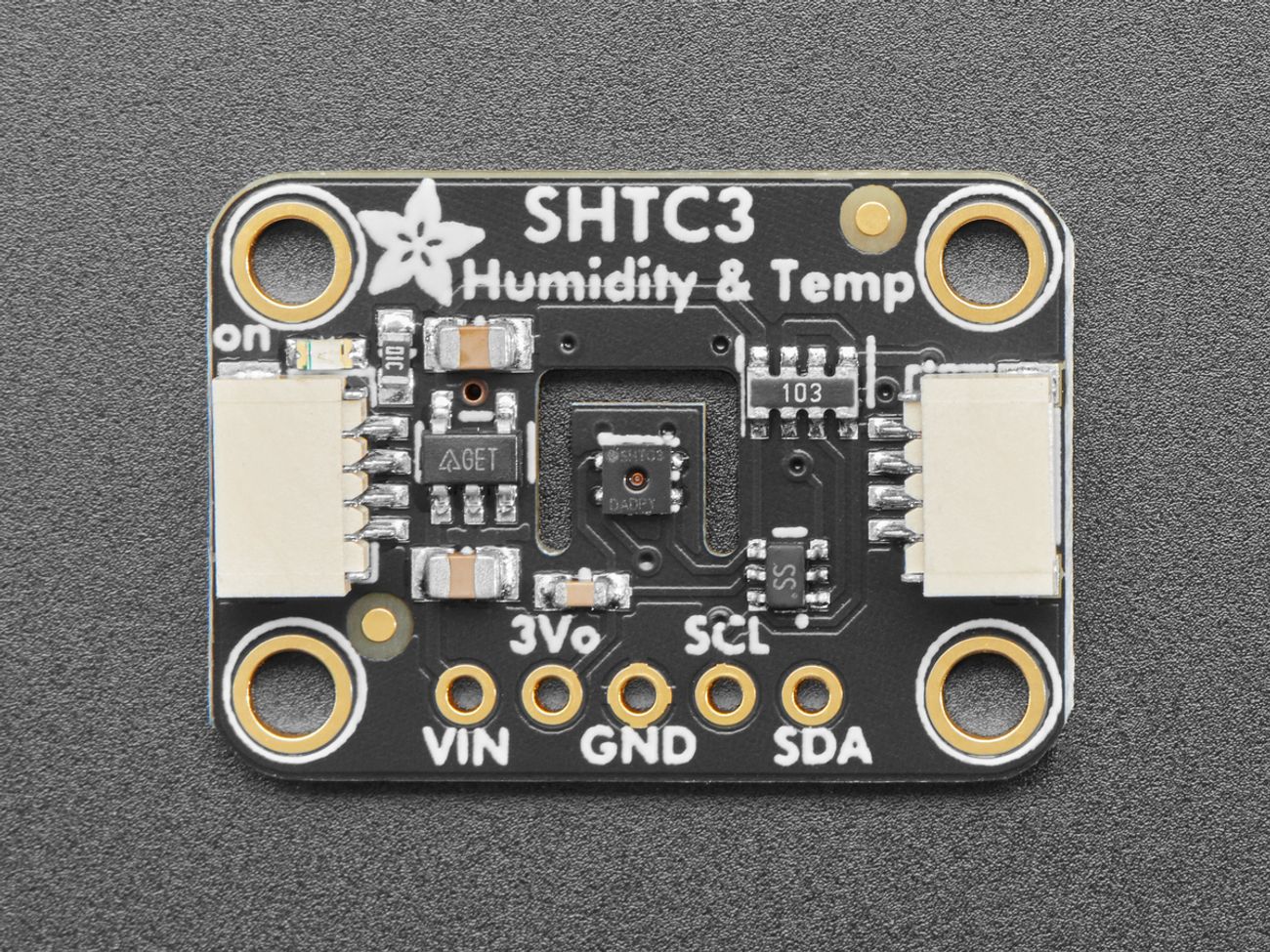

Pinout
| Pin | Description |
|---|---|
| VIN | Power input (3V–5V DC). Feeds onboard voltage regulator. Use same voltage as your microcontroller logic level. |
| 3Vo | Regulated 3.3V output from onboard regulator. Can supply up to 100mA to external circuits. |
| GND | Common ground for power and I2C logic. |
| SCL | I2C clock line. Connect to microcontroller’s I2C SCL pin. |
| SDA | I2C data line. Connect to microcontroller’s I2C SDA pin. |
| STEMMA QT / Qwiic | Dual JST-SH connectors for plug-and-play I2C connection without soldering. |
