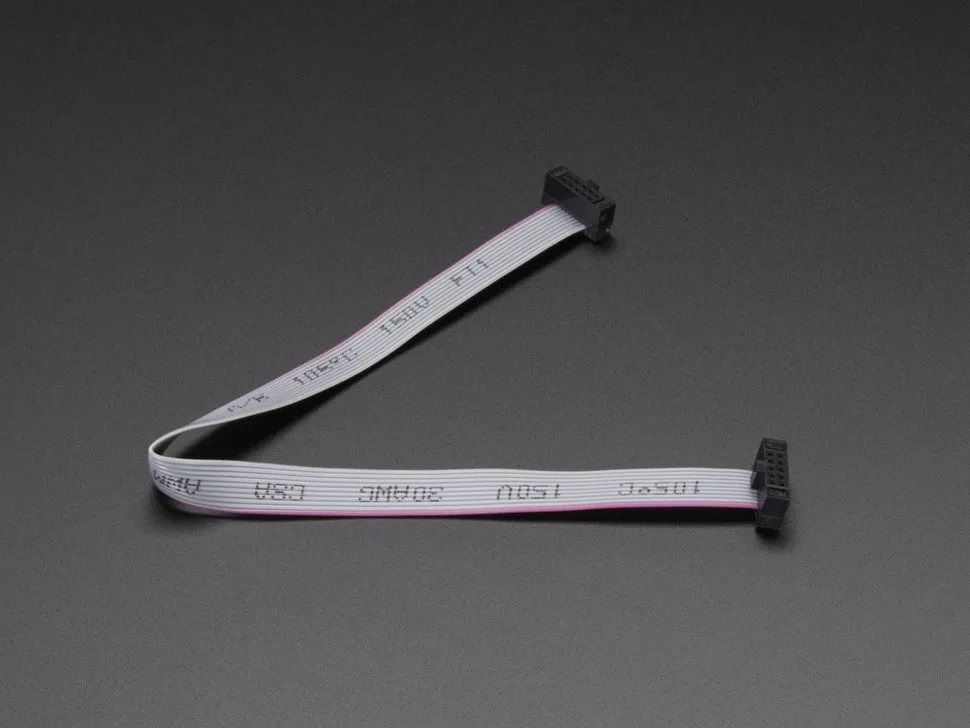

10-pin 2x5 Socket-Socket 1.27mm IDC (SWD) Cable - 150mm long

Overview

Picture yourself tinkering on a project that involves programming or troubleshooting a small circuit board. If you've dealt with those finicky 10-pin 1.27mm (0.05") pitch SWD programming connectors, you know they can be a bit of a challenge. Well, here's some good news – Adafruit has come to the rescue! We've stocked up on these nifty little cables and made them available in our shop, so you can always have a trusty backup cable at your fingertips when you need it most.

This cable has a pitch (basically the spacing between the wires) of 0.06mm/0.025". It's designed to snugly connect to a 1.27mm (0.05") pitch 2x5 box connector. It's worth noting that these cables aren't meant for programming most AVRs or other bigger devices with 0.1" pitch connectors. So, please make sure to verify your requirements before making your selection!

So, ensure you've got the correct cable on standby for your project, and you'll be all set for smooth sailing when it comes to programming and debugging those petite circuit boards. Happy tinkering!

Specification

• Cable Type:
  Ribbon cable
• Cable Pitch:
  0.06mm/0.025"
• Connector Type:
  1.27mm (0.05") pitch 2x5 box connector
• Dimensions:
  The cable itself measures 150mm long x 6mm wide, which is roughly equivalent to 5.9" x 0.3".
• Connector Dimensions:
  The connector is a compact 5mm x 3mm in size.
• Weight:
  Each cable is incredibly lightweight, tipping the scales at just 1.9 grams.
